PE7051-2

Overview

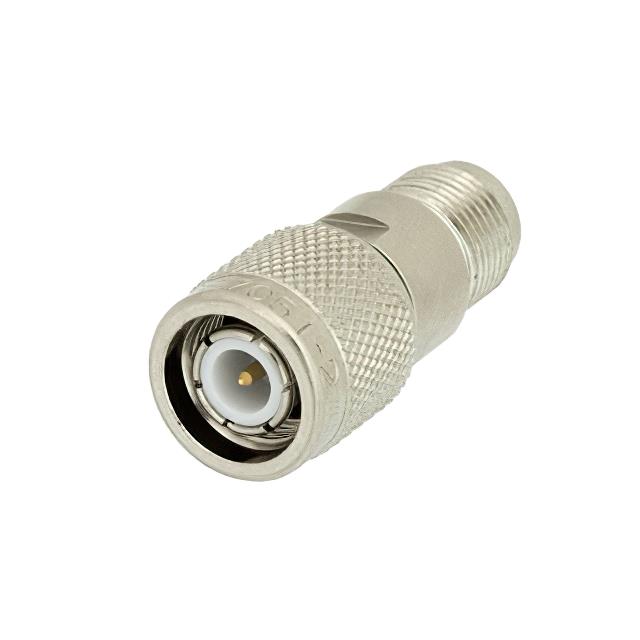

The Pasternack PE7051-2 is a fixed attenuator designed for RF applications, featuring TNC male to TNC female connectors. It provides a precise attenuation value of 2 dB and operates within a frequency range up to 12.4 GHz. The unit is rated for a maximum power handling capacity of 2 Watts. Constructed with a brass body finished in nickel plating, it ensures durability and consistent performance in high-frequency signal processing environments requiring stable impedance matching.

Feature Summary

• Provides fixed 2 dB attenuation for signal level control
• Operates reliably up to 12.4 GHz frequency range
• Features TNC male to TNC female connector interface
• Rated for 2 Watts maximum power handling

Applications

• RF signal chain calibration
• Test and measurement equipment
• Communication system signal conditioning

Procurement Notes

Verify the specific model number PE7051-2 against official Pasternack documentation to confirm the 2 dB attenuation value and 12.4 GHz frequency limit. Ensure compatibility with TNC connector types and 2 Watt power ratings for your specific application requirements before procurement.

Selection Notes

Select this component when a fixed 2 dB reduction is required in a TNC-based RF system operating below 12.4 GHz. Consider the 2 Watt power rating and brass-nickel construction for environmental and electrical suitability compared to variable or higher-power alternatives.

Part Context

This part belongs to the Pasternack TNC 50 Ohm fixed attenuator series. These components are manufactured to precise industry specifications, offering reliable signal attenuation in standardized TNC interfaces. The series supports various attenuation values for different RF design needs.

Replacement Considerations

Check for exact matches in attenuation (2 dB), frequency range (up to 12.4 GHz), power rating (2 Watts), and connector type (TNC Male/Female) from other manufacturers if sourcing alternatives.
