PE7052-30

Overview

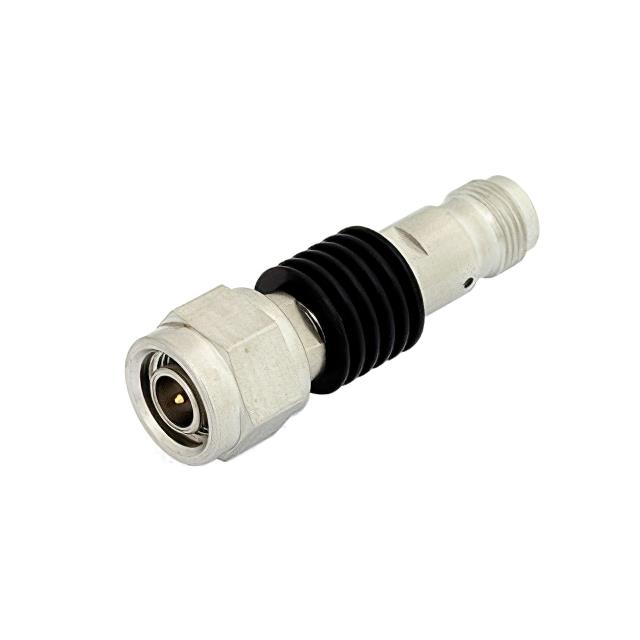

The Pasternack PE7052-30 is a fixed attenuator featuring TNC male to TNC female connectors. It provides a nominal attenuation of 30 dB and operates up to 18 GHz. The unit utilizes a black anodized aluminum heatsink body for thermal management. Rated for 2 watts of power, it maintains a VSWR of 1.2:1 and includes a 1/4 inch hex nut for mounting.

Feature Summary

• Black anodized aluminum heatsink body construction
• TNC male to TNC female connector configuration
• Fixed 30 dB attenuation value
• Operational frequency range extending to 18 GHz

Applications

• RF signal level reduction in test setups
• Impedance matching between circuit stages
• Protection of sensitive measurement instruments
• Signal conditioning in communication systems

Procurement Notes

Verify the specific datasheet version for the PE7052-30 to confirm exact power ratings and frequency limits. Ensure connector gender and interface standards match system requirements. Check for RoHS compliance status if environmental regulations apply. Confirm mounting hardware availability for integration into existing chassis designs.

Selection Notes

Select this component when a precise 30 dB reduction is required at TNC interfaces. Consider the 2-watt power handling limit for high-power applications. Evaluate the 18 GHz bandwidth against system operating frequencies. The heatsink design supports thermal dissipation needs in enclosed environments.

Part Context

This model belongs to Pasternack's fixed attenuator series designed for RF interconnects. It serves as a passive component for managing signal strength without introducing active gain. The TNC interface ensures compatibility with standard coaxial systems requiring secure connections.

Replacement Considerations

Compatible substitutes include other 30 dB fixed attenuators with TNC connectors. Verify that replacement units meet or exceed the 18 GHz frequency range and 2-watt power rating. Ensure physical dimensions and mounting options align with existing installation constraints.
