PE7052-6

Overview

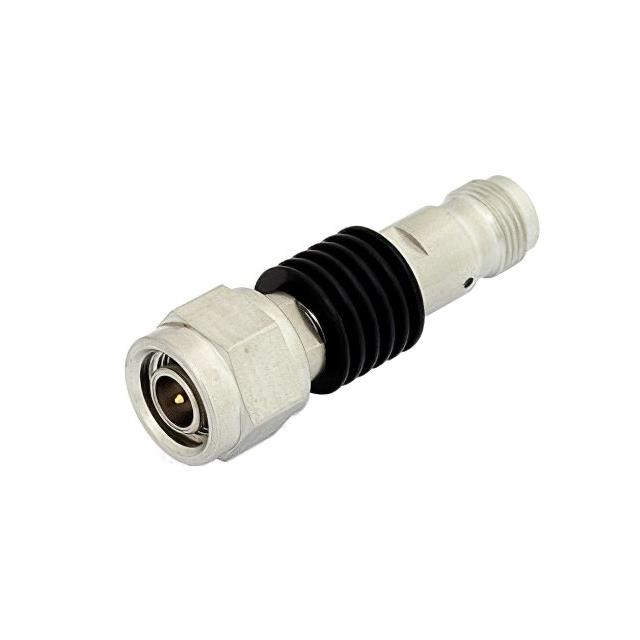

The Pasternack PE7052-6 is a fixed RF attenuator designed for microwave applications. It features TNC male to TNC female connectors and provides a precise attenuation value of 6 dB. The device operates effectively up to a maximum frequency of 18 GHz. It is rated to handle an input power of 5 Watts at the stated attenuation level. The housing is constructed from black anodized aluminum, which functions as a heatsink to manage thermal dissipation during operation.

Feature Summary

• Provides fixed 6 dB signal attenuation
• Operates up to 18 GHz frequency range
• Rated for 5 Watts power handling
• Black anodized aluminum heatsink housing

Applications

• Microwave signal conditioning
• RF test and measurement setups
• Signal level reduction in transmission lines

Procurement Notes

Verify the specific connector gender configuration and physical dimensions against your system requirements before purchase. Confirm that the 5 Watt power rating aligns with your operational signal levels. Ensure the 18 GHz frequency limit meets your application bandwidth needs. Check for any specific environmental ratings if used in harsh conditions.

Selection Notes

Select this component when a fixed 6 dB loss is required in a TNC interface system. Consider the 5 Watt power capacity for high-power RF paths. The 18 GHz rating suits broadband microwave applications. Evaluate the heatsink design for thermal management in enclosed spaces compared to non-heatsink variants.

Part Context

This part belongs to Pasternack's line of fixed RF attenuators. It serves as a passive component for controlling signal amplitude in coaxial systems. The TNC interface offers robust connectivity for frequencies up to 11 GHz typically, but this unit extends performance to 18 GHz. It complements other attenuator values and connector types in the manufacturer's catalog.
