PE7053-6

Overview

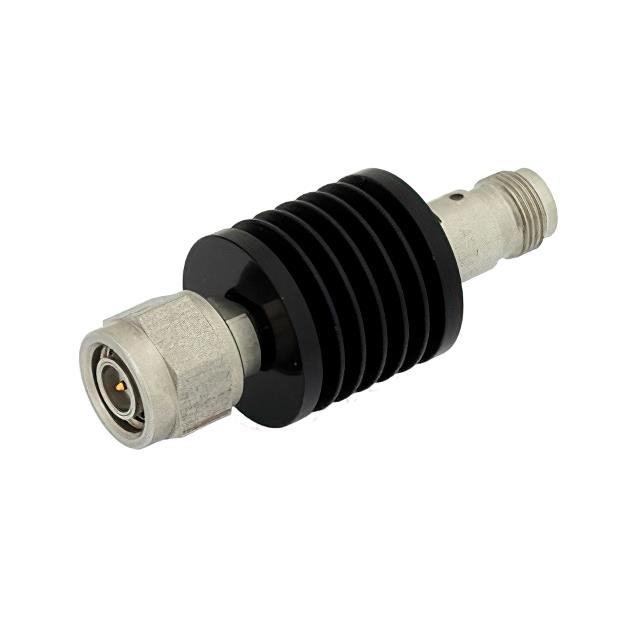

The Pasternack PE7053-6 is a fixed RF attenuator designed for high-frequency applications. It provides a precise attenuation value of 6 dB with TNC male to TNC female connectors. The component operates effectively up to a maximum frequency of 18 GHz. It supports a power rating of 10 Watts at the stated attenuation level. The housing is constructed from black anodized aluminum, ensuring durability and thermal stability in demanding environments.

Feature Summary

• Provides stable 6 dB signal reduction across a wide microwave bandwidth
• Features robust TNC connector interface for secure cable attachment
• Utilizes durable black anodized aluminum construction for heat dissipation

Applications

• Microwave signal testing and measurement setups
• RF system power level adjustment
• Signal path isolation in high-frequency circuits

Procurement Notes

Verify the specific model number against official Pasternack documentation to ensure compatibility with your system requirements. Confirm that the 18 GHz frequency limit and 10 Watt power rating align with your operational parameters. Check for any updated datasheets or compliance certifications before finalizing procurement decisions.

Selection Notes

Select this component when a fixed 6 dB attenuation is required within a TNC-based infrastructure. Ensure the operating environment does not exceed the specified temperature range. Consider the physical size and mounting options if space constraints exist in the assembly design.

Part Context

This part belongs to Pasternack's line of fixed RF attenuators, which are essential passive components for managing signal strength. These devices are commonly used in telecommunications, radar systems, and test equipment where precise signal control is critical for accurate performance analysis.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
