PE7054-10

Overview

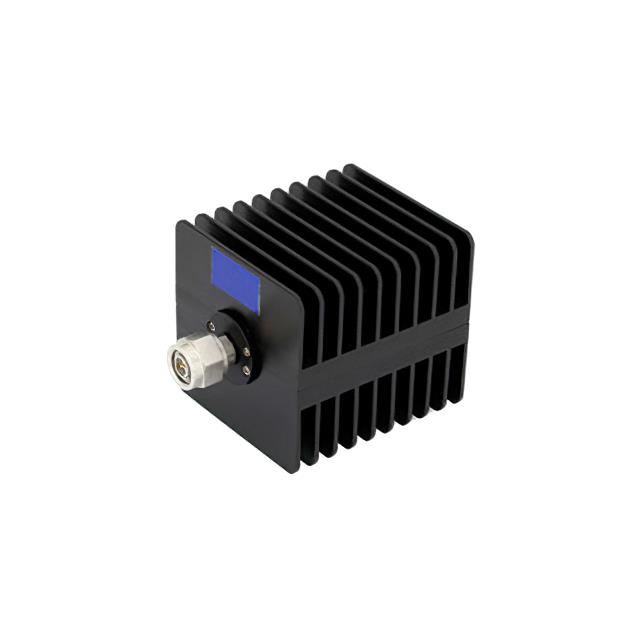

The PE7054-10 is a fixed attenuator from Pasternack's RF component portfolio. It provides a nominal attenuation of 10 dB with a TNC male-to-TNC female interface configuration. The device features a black anodized aluminum heatsink body, rated for 25 watts power handling up to 18 GHz frequency range.

Feature Summary

• Black anodized aluminum heatsink body construction
• TNC male to TNC female interface configuration
• Rated for 25 watts power handling

Applications

• RF signal level control in communication systems
• Microwave circuit testing and measurement setups
• Signal attenuation in high-frequency transmission lines

Procurement Notes

Verify the specific datasheet version for exact electrical tolerances and mechanical dimensions before integration. Confirm that the TNC connector gender and mating requirements align with your system design. Ensure the operating environment supports the specified 25-watt power rating and 18 GHz frequency limit for reliable performance.

Selection Notes

Select this component when a 10 dB fixed attenuation value is required within a TNC-based system architecture. The aluminum heatsink body makes it suitable for applications requiring robust thermal management at higher power levels up to 25 watts. Consider the 18 GHz upper frequency limit to ensure compatibility with your operational bandwidth requirements.

Part Context

This part belongs to Pasternack's line of fixed attenuators, which are essential passive components for managing signal strength in RF and microwave circuits. These devices maintain impedance matching while providing precise signal reduction, ensuring optimal system performance across various communication and testing environments.

Replacement Considerations

PE7052-10_16 is a confirmed substitute offering identical 10 dB attenuation and TNC male-to-female configuration. Both parts share similar power handling capabilities and frequency ranges, allowing for direct interchangeability in existing designs without modification.
