PE7056-30

Overview

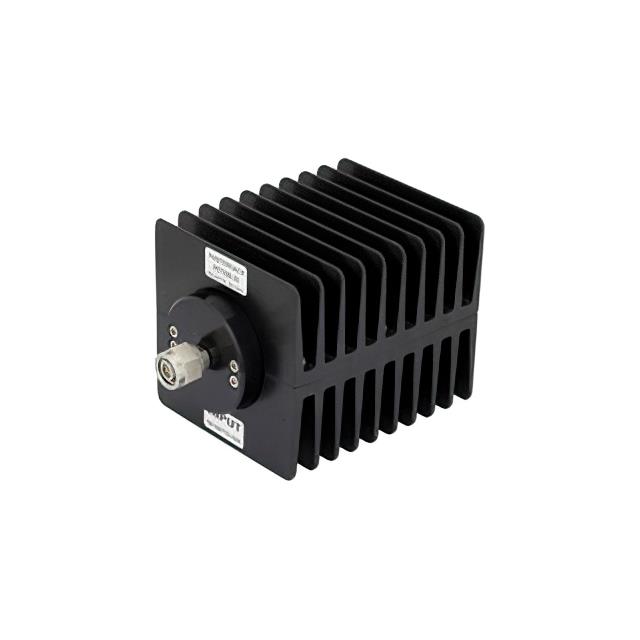

The PE7056-30 is a fixed directional attenuator manufactured by Pasternack. It features TNC male to TNC female connectors and utilizes a black anodized aluminum heatsink body. The component provides 30 dB of attenuation with a 50 Ohm impedance. It operates from DC to 1.5 GHz and supports a maximum input power of 100 Watts.

Feature Summary

• Directional in-line resistive PI attenuator pad design
• Black anodized aluminum heatsink body for thermal management
• TNC male to TNC female connector configuration

Applications

• RF signal level reduction in microwave systems
• Test and measurement equipment interconnects
• High-power RF circuit protection

Procurement Notes

Verify the specific frequency range and power rating against the official datasheet, as conflicting public data exists regarding 1.5 GHz versus higher frequencies. Confirm the manufacturer is Pasternack Enterprises and check for RoHS compliance status before finalizing procurement orders.

Selection Notes

Select this model when high power handling up to 100 Watts is required at 30 dB attenuation. Ensure system interfaces match the TNC male/female configuration. Consider the physical dimensions and heatsink requirements for integration into the target RF assembly.

Part Context

This part belongs to the Pasternack fixed attenuator series. It is designed for applications requiring precise signal reduction in coaxial environments. The product line emphasizes durability through metal construction and standardized connector interfaces for reliable RF performance.

Replacement Considerations

No verified substitute part numbers are available in the provided documentation.
