PE7057-3

$153.81

Description：3 dB Fixed Attenuator, 75 Ohm F
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:5464ae09e042 Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：3 dB Fixed Attenuator, 75 Ohm F
Series：-
Mfr：Pasternack
Package：Retail Package
Attenuation Value：3dB
Frequency Range：0 Hz ~ 1 GHz
Power (Watts)：2W
Impedance：75 Ohms
Grade：-
Qualification：-
Package / Case：F-Type In-Line Module

Download product information

PE7057-3

Overview

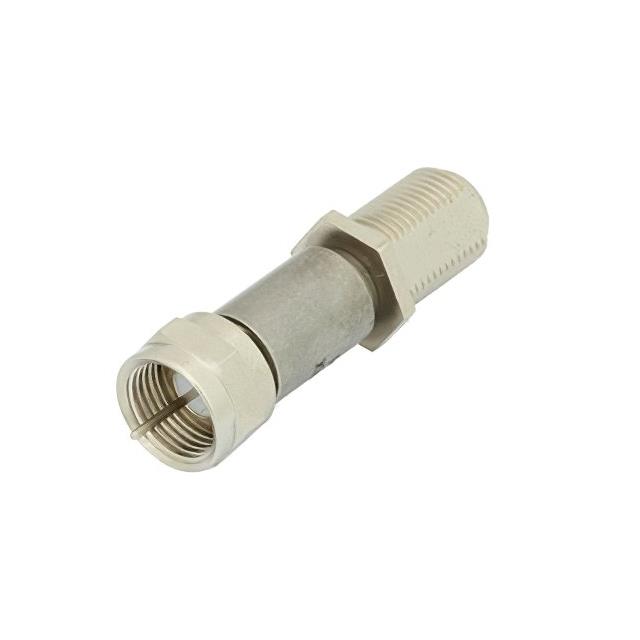

The Pasternack PE7057-3 is a fixed attenuator module designed for 75 Ohm systems. It provides a precise attenuation value of 3 dB across a frequency range from 0 Hz to 1 GHz. The device is rated for a maximum power handling capacity of 2 Watts. It features F-Type connectors, specifically an F Male input and an F Female output, facilitating direct inline integration into coaxial circuits.

Feature Summary

Provides fixed 3 dB signal attenuation
Engineered for 75 Ohm impedance environments
Operates effectively up to 1 GHz frequency
Supports 2 Watt power rating

Applications

Signal level adjustment in 75 Ohm RF networks
Inline attenuation for broadcast infrastructure
Test and measurement circuit calibration

Procurement Notes

Verify the specific connector gender configuration matches the system requirement, as this model specifies an F Male to F Female arrangement. Confirm that the 2 Watt power rating aligns with the operational load. Ensure the 75 Ohm impedance specification is compatible with the surrounding transmission line components to prevent mismatch losses.

Selection Notes

Select this component when a fixed reduction in signal strength is required within a 75 Ohm architecture. It is suitable for applications where variable attenuation is unnecessary. Consider the physical form factor for inline mounting. Verify that the operating frequency does not exceed the 1 GHz upper limit to maintain specified performance characteristics.

Part Context

This part belongs to the Pasternack fixed attenuator series, which offers various attenuation values and impedance options. The PE7057-3 specifically addresses the need for standardized 75 Ohm attenuation, commonly found in video and broadcast distribution systems. It serves as a passive component for managing signal integrity.

Replacement Considerations

Compatible substitutes include other 3 dB fixed attenuators with 75 Ohm impedance and F-Type connectors. Ensure replacement parts meet the same 2 Watt power rating and 1 GHz frequency specifications. Verify mechanical dimensions for proper fit in existing assemblies.
