PE7061-10

Overview

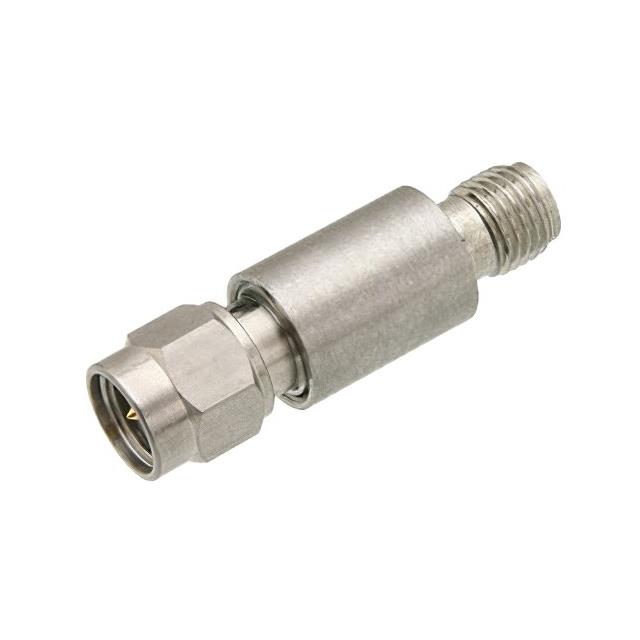

The PE7061-10 is a fixed RF attenuator from Pasternack, designed for coaxial applications with a nominal attenuation of 10 dB. It features SMA male to SMA female connectors and operates within an impedance of 50 Ohms. The device supports DC bias functionality and is rated for up to 2 Watts of power handling. Its operational frequency range extends from 500 MHz to 2 GHz. The unit utilizes a passivated stainless steel body for durability.

Feature Summary

• Supports DC bias integration for active circuit control
• Constructed with a passivated stainless steel housing
• Provides fixed 10 dB attenuation in a compact form factor

Applications

• RF signal path power reduction
• Impedance matching in microwave systems
• Test and measurement equipment calibration

Procurement Notes

Verify the specific connector gender configuration and DC bias requirements against system schematics before ordering. Confirm that the operating frequency range of 500 MHz to 2 GHz aligns with the application bandwidth. Ensure the 2 Watt power rating exceeds the maximum expected signal level to prevent component damage. Check for any required accessories or mounting hardware not included in the standard package.

Selection Notes

Select this model when a fixed 10 dB loss is required between SMA interfaces. Consider the DC bias capability if variable gain stages are present in the chain. Evaluate the 500 MHz lower frequency limit to ensure compatibility with baseband signals. Compare the stainless steel construction against environmental conditions such as corrosion resistance needs.

Part Context

This component belongs to the Pasternack series of SMA 50 Ohm DC Bias Attenuators. It is part of a family offering various attenuation values, such as the PE7061-20. These units are engineered for reliable performance in RF environments requiring precise signal control and durable mechanical connections.

Replacement Considerations

The PE7061-20 serves as a substitute offering 20 dB attenuation with identical interface and power specifications.
