PE7061-6

$205.08

Description：6 dB DC Bias Attenuator, SMA Mal
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:c0a4a0969869 Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：6 dB DC Bias Attenuator, SMA Mal
Series：-
Mfr：Pasternack
Package：Retail Package
Attenuation Value：6dB
Frequency Range：500 MHz ~ 2 GHz
Power (Watts)：2W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：SMA In-Line Module

Download product information

PE7061-6

Overview

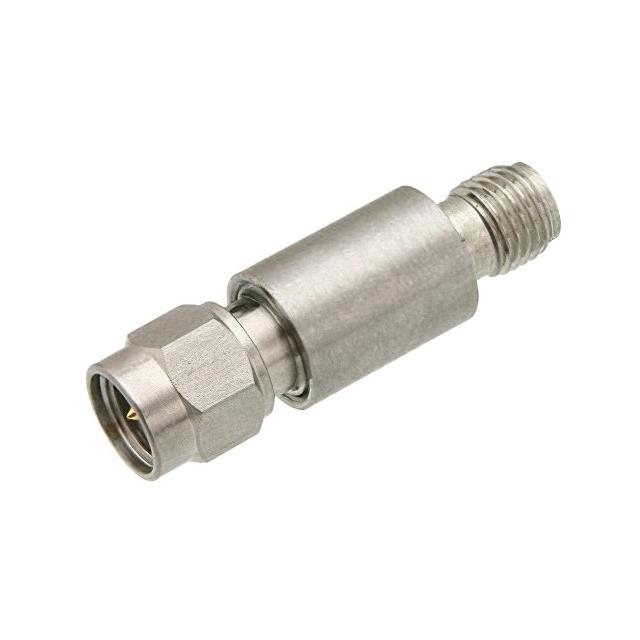

The Pasternack PE7061-6 is a coaxial DC bias attenuator designed for RF and microwave applications. It provides an attenuation value of 6 dB with a nominal impedance of 50 Ohms. The device operates within a frequency range of 500 MHz to 2 GHz. It features SMA male to SMA female connectors and is rated for a maximum power handling of 2 Watts. The unit utilizes a passivated stainless steel body for durability.

Feature Summary

Integrates DC bias capability alongside signal attenuation in a single inline module
Constructed with a passivated stainless steel body for environmental resistance
Utilizes SMA connector interfaces for standard RF system integration

Applications

Microwave circuit testing and instrumentation
RF signal path conditioning
Telecommunications equipment maintenance

Procurement Notes

Verify the specific part number suffix against official manufacturer documentation to confirm exact electrical tolerances and connector gender configurations. Ensure compatibility with existing SMA interface requirements in the target assembly. Cross-reference datasheet specifications for power handling limits before deployment in high-power environments.

Selection Notes

Select this component when a fixed 6 dB attenuation is required alongside DC bias injection capabilities. Confirm that the operating frequency range between 500 MHz and 2 GHz aligns with the system bandwidth. Verify that the 2 Watt power rating meets the peak signal levels present in the application circuit.

Part Context

This model belongs to the Pasternack PE7061 series of DC bias attenuators. The series offers various attenuation values, such as 10 dB or 20 dB options, while maintaining consistent SMA connectivity and power ratings. These components are engineered for inline insertion into coaxial transmission lines.

Replacement Considerations

Compatible substitutes include other Pasternack models from the same series, such as the PE7061-10 or PE7061-20, provided the attenuation difference is acceptable for the circuit design.
