PE7062-10

Overview

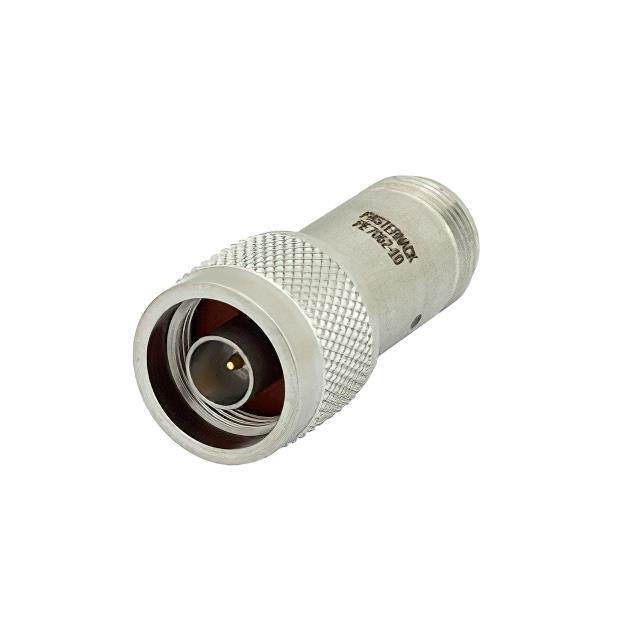

The PE7062-10 is a DC bias attenuator from Pasternack, featuring N Male to N Female passivated stainless steel connectors. It provides 10 dB attenuation within a frequency range of 500 MHz to 2 GHz. The component operates at 50 Ohms impedance and handles 2W power. Designed as an in-line module, it supports reliable performance in embedded systems and industrial automation applications.

Feature Summary

• Provides fixed 10 dB attenuation for RF signal management
• Supports DC bias functionality through the attenuator path
• Constructed with passivated stainless steel body for durability
• Features N-type male to female coaxial interface

Applications

• Embedded systems requiring signal level adjustment
• Industrial automation equipment RF circuits
• Electronics applications needing precise attenuation

Procurement Notes

Verify the specific connector gender configuration matches the system requirements, ensuring N Male input and N Female output alignment. Confirm that the 2W power rating and 500 MHz to 2 GHz frequency range suit the operational environment. Check for passivated stainless steel construction details to ensure environmental compatibility. Validate datasheet specifications against current project constraints before finalizing procurement decisions.

Selection Notes

Select this component when a fixed 10 dB attenuation value is required within the 500 MHz to 2 GHz band. Ensure the system accommodates N-type connectors and 50 Ohm impedance. Consider the 2W power handling capability for high-power applications. Verify DC bias requirements align with the attenuator's design capabilities. Evaluate the stainless steel construction for environmental protection needs.

Part Context

This part belongs to Pasternack's line of RF attenuators designed for robust performance. It serves as a passive component for managing signal levels in wireless and RF systems. The model number indicates specific attenuation and connector configurations within the product family.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer resources for equivalent models with matching electrical and mechanical specifications.
