PE7062-20

Overview

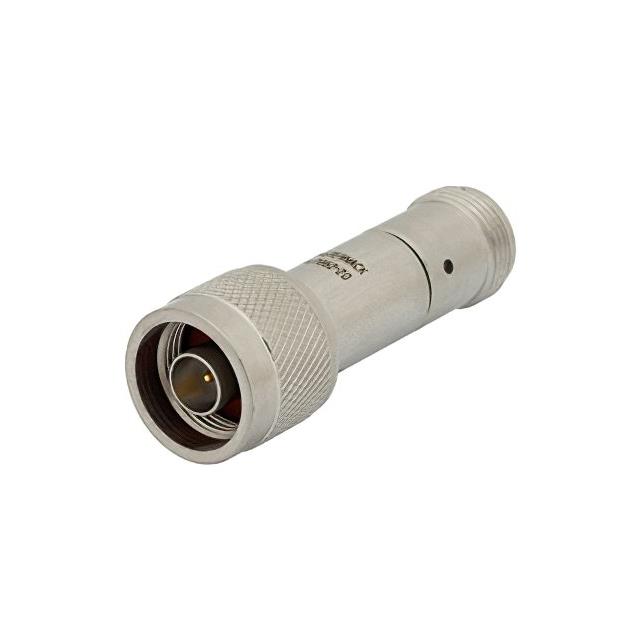

The Pasternack PE7062-20 is a fixed coaxial attenuator with a nominal attenuation value of 20 dB. It operates within a frequency range extending up to 18 GHz. The device features an N-type connector configuration, specifically utilizing an N male input and an N female output interface. Constructed with a passivated stainless steel body, the unit is rated for a maximum power handling capacity of 2 Watts. This component is designed for reliable signal reduction in RF applications requiring precise attenuation characteristics across microwave frequencies.

Feature Summary

• Provides fixed 20 dB signal attenuation
• Operates up to 18 GHz frequency range
• Features N male to N female connectors
• Constructed with passivated stainless steel housing

Applications

• RF signal level adjustment
• Microwave circuit testing
• Signal path isolation
• Impedance matching networks

Procurement Notes

Verify that the specific order matches the PE7062-20 designation to ensure correct 20 dB attenuation and N-type connector polarity. Confirm that the application environment remains within the 2 Watt power rating and 18 GHz frequency limit. Check for RoHS compliance requirements if applicable to the manufacturing process. Ensure physical dimensions fit the intended assembly space.

Selection Notes

Select this model when a fixed 20 dB loss is required at N-type interfaces. Consider the 2 Watt power limit for high-power signal paths. Evaluate the 18 GHz upper frequency limit against system bandwidth needs. Stainless steel construction offers durability for general-purpose RF environments compared to plated alternatives.

Part Context

This component belongs to the Pasternack PE7000 series of fixed coaxial attenuators. The series includes various attenuation values such as 1 dB and 10 dB models sharing similar form factors. These components are passive devices used to reduce signal amplitude without introducing active gain or noise. The PE7062-20 represents a standard solution for precise signal control in microwave systems.

Replacement Considerations

Compatible substitutes include other manufacturers' 20 dB N-type fixed attenuators rated for 18 GHz and 2 Watts. Ensure replacement units maintain identical connector gender and thread standards. Verify that alternative parts meet the same power handling and frequency specifications to avoid performance degradation.
