PE7063-6

Overview

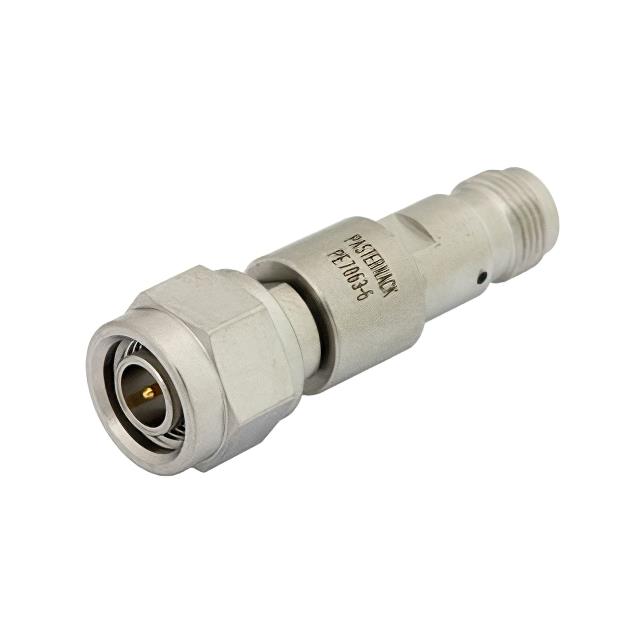

The Pasternack PE7063-6 is a fixed RF attenuator designed for high-frequency applications. It provides an attenuation value of 6 dB with a power handling capacity of 2 Watts. The device operates within a frequency range from DC to 18 GHz and maintains a characteristic impedance of 50 Ohms. It utilizes TNC connectors, featuring a male interface on one side and a female interface on the other. The construction includes passivated stainless steel housing for durability.

Feature Summary

• Incorporates passivated stainless steel housing for enhanced environmental resistance and mechanical durability.
• Supports DC bias capability, allowing simultaneous signal attenuation and control voltage application.
• Features TNC connector interfaces for secure in-line module integration.

Applications

• High-frequency test and measurement instrumentation
• Telecommunications equipment signal conditioning
• RF circuit design requiring precise attenuation levels

Procurement Notes

Verify the specific datasheet version to confirm the exact frequency range specification, as some sources cite up to 18 GHz while others may reference lower bands. Ensure the required DC bias current rating aligns with system requirements. Confirm that the TNC male-to-female configuration matches the existing cabling infrastructure to prevent impedance mismatches or connection issues.

Selection Notes

Select this component when a 6 dB attenuation level is required at frequencies extending up to 18 GHz. The 2 Watt power rating suits moderate power applications. The DC bias feature distinguishes it from standard fixed attenuators, making it suitable for active circuits. Consider the TNC interface compatibility with existing assembly hardware before finalizing the selection.

Part Context

This model belongs to Pasternack's line of TNC 50 Ohm DC Bias Attenuators. It is part of a series offering various attenuation values, such as PE7063-10 and PE7063-20, sharing similar physical and electrical characteristics but differing in dB loss. These components are engineered for reliable performance in demanding RF environments.

Replacement Considerations

Direct substitutes include other models within the same PE7063 series, such as PE7063-10 or PE7063-20, if different attenuation values are acceptable. Generic replacements must match the 50 Ohm impedance, TNC interface, and 2 Watt power rating. Verify that any alternative component also supports DC bias functionality if required by the design.

FAQ

What is the maximum operating frequency for the PE7063-6?

The component operates from DC to 18 GHz.

Does this attenuator support DC bias?

Yes, the PE7063-6 is designed to support DC bias applications.
