PE7085-20

Overview

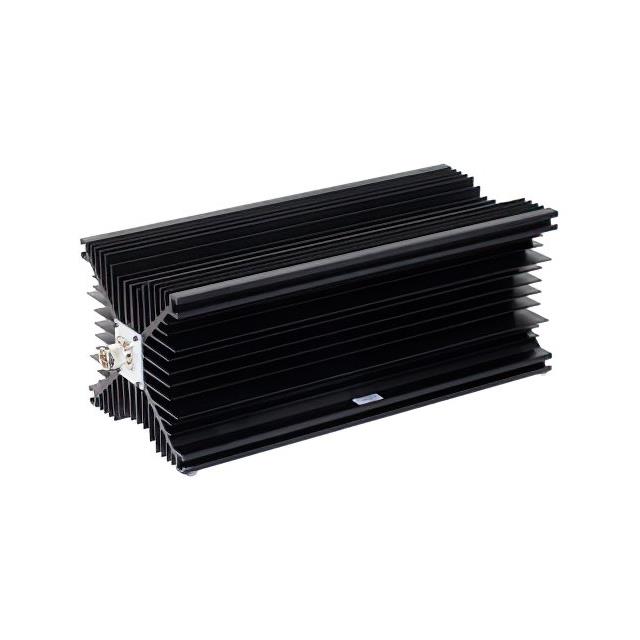

The Pasternack PE7085-20 is a fixed 20 dB attenuator featuring N male to N female connectors. It operates within a frequency range of 0 Hz to 2.4 GHz and maintains a 50 Ohm impedance. The device utilizes an in-line, resistive PI attenuator pad design. It is rated for a power handling capacity of 500 Watts.

Feature Summary

• In-line resistive PI attenuator pad design
• N male to N female connector configuration
• Rated for up to 500 Watts power handling

Applications

• RF signal attenuation in coaxial systems
• Test and measurement equipment
• Signal level adjustment in communication networks

Procurement Notes

Verify the specific part number PE7085-20 against official Pasternack documentation to confirm the 500W power rating and 2.4 GHz frequency limit. Ensure connector gender matches system requirements (N Male to N Female). Cross-reference datasheets from authorized distributors to validate current product status and technical specifications before procurement.

Selection Notes

Select this component when a high-power 20 dB attenuation is required at frequencies up to 2.4 GHz. The N-type connectors provide robust mechanical stability. Verify that the 500W power rating aligns with the maximum expected signal power in the application circuit to ensure safe operation and prevent damage to the attenuator.

Part Context

This model belongs to Pasternack's line of fixed coaxial attenuators. It is designed for general-purpose RF applications requiring precise signal reduction. The N-type interface ensures compatibility with standard coaxial cables and components commonly used in lower frequency RF environments up to 2.4 GHz.

Replacement Considerations

Check for equivalent models with matching 20 dB attenuation, 50 Ohm impedance, and N-type connectors. Ensure replacement parts support the same 500W power rating and 2.4 GHz frequency range. Verify physical dimensions and mounting requirements if space constraints exist.
