PE7087-15

Overview

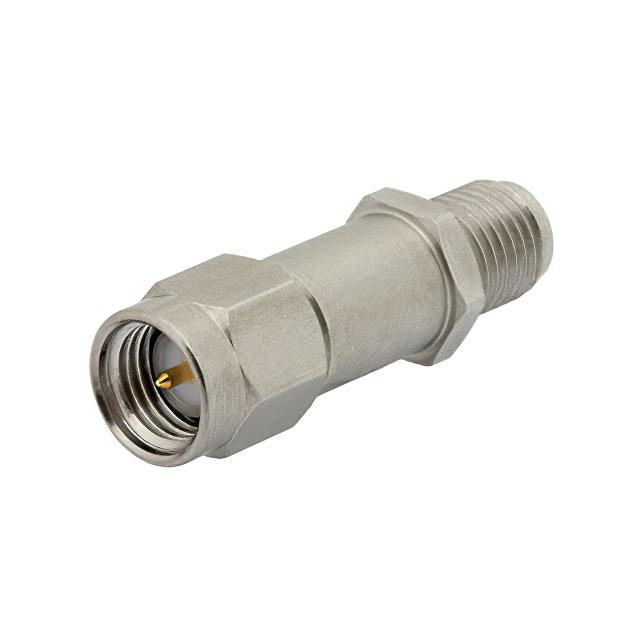

The PE7087-15 is a fixed RF attenuator manufactured by Pasternack, designed for high-frequency signal management. It provides a precise attenuation value of 15 dB across a frequency range extending from 0 Hz to 26 GHz. The component operates with a 50 Ohm impedance and supports a power handling capacity of 2 Watts. It utilizes SMA connectors for interface connectivity and is packaged as an in-line module.

Feature Summary

• Provides fixed 15 dB signal attenuation
• Operates up to 26 GHz frequency range
• Supports 2 Watt power handling

Applications

• RF signal level reduction
• Impedance matching in test setups
• Signal isolation in microwave circuits

Procurement Notes

Verify the specific datasheet for the PE7087-15 to confirm current manufacturing status and detailed electrical tolerances. Ensure compatibility with existing SMA connector interfaces and verify that the 2W power rating meets system requirements before integration.

Selection Notes

Select this component when a fixed 15 dB attenuation is required at frequencies up to 26 GHz. Consider the 50 Ohm impedance and SMA interface for standard RF applications. Evaluate the 2W power limit against peak signal levels to prevent damage.

Part Context

This part belongs to Pasternack's line of fixed RF attenuators. It serves as a passive component for controlling signal strength in radio frequency systems. The in-line module design facilitates easy integration into coaxial cable runs.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer resources for direct equivalents if this specific model is unavailable.
