PE7087-5

Overview

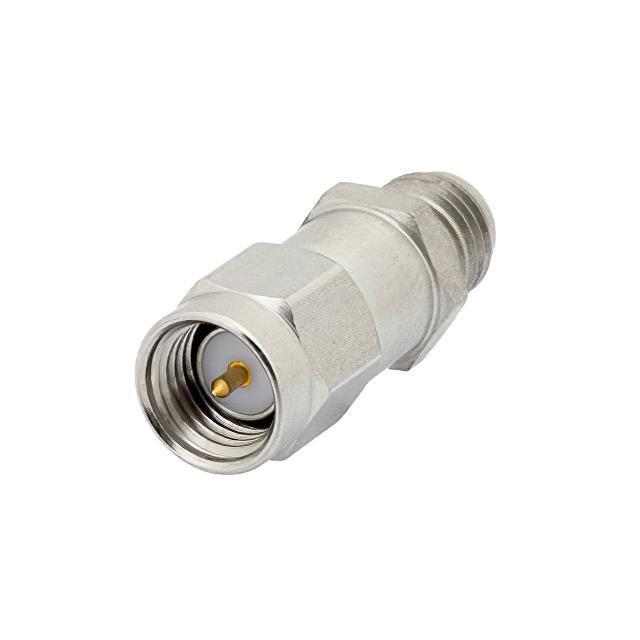

The Pasternack PE7087-5 is a fixed RF attenuator designed for microwave applications. It provides an attenuation value of 5 dB with a nominal impedance of 50 Ohms. The device utilizes SMA connectors, featuring a male-to-female configuration. It is rated to handle up to 2 Watts of power at the stated attenuation level. The unit operates effectively from DC up to a maximum frequency of 26 GHz. The housing is constructed from passivated stainless steel to ensure durability and signal integrity in high-frequency environments.

Feature Summary

• Provides precise 5 dB fixed attenuation for signal control
• Operates across a wide frequency range from DC to 26 GHz
• Constructed with a durable passivated stainless steel body
• Features standard SMA male-to-female interface connections

Applications

• Microwave test and measurement setups
• RF signal path power reduction
• Communication system component integration
• Laboratory equipment interconnects

Procurement Notes

Verify the specific connector gender configuration (SMA Male to SMA Female) matches the circuit design requirements. Confirm that the 2 Watt power rating and 5 dB attenuation value align with the system's operational limits. Ensure the 26 GHz frequency capability meets the application's bandwidth needs. Check for any specific environmental or compliance certifications required by the end-use industry before finalizing the order.

Selection Notes

Select this component when a fixed 5 dB reduction is required in a 50 Ohm system. It is suitable for applications needing reliable performance up to 26 GHz. Consider the stainless steel construction for robustness. Ensure the SMA interface type fits the existing cable or fixture constraints. Verify power handling capabilities against peak signal levels.

Part Context

This part belongs to the Pasternack PE7087 series of fixed attenuators. The series offers various attenuation values while maintaining consistent SMA connectivity and power ratings. These components are engineered for consistency in RF signal management across different frequency bands within the microwave spectrum.

Replacement Considerations

Direct substitutes must match the 5 dB attenuation, 50 Ohm impedance, SMA male-to-female interface, and 26 GHz frequency limit. Ensure equivalent power handling of 2 Watts. Verify physical dimensions and mounting style compatibility if space is constrained.
