PE7087-7

Overview

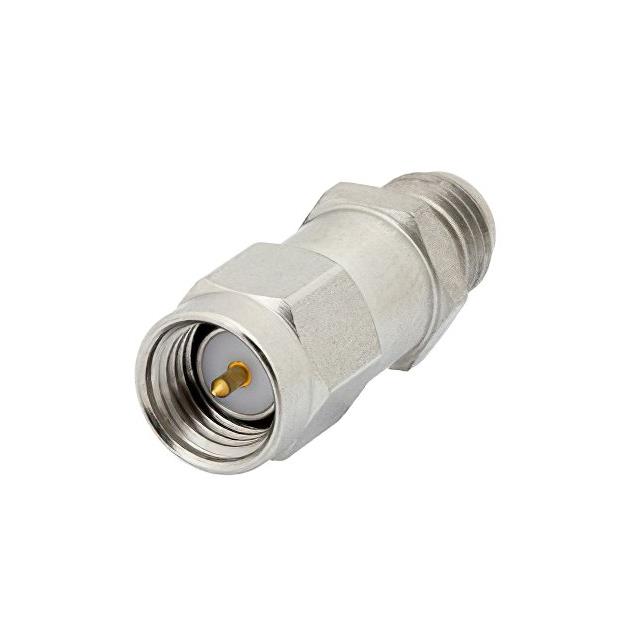

The Pasternack PE7087-7 is a fixed RF attenuator designed for high-frequency applications up to 26 GHz. It provides a precise attenuation value of 7 dB with a power rating of 2 Watts. The component features SMA male-to-SMA female connectors and utilizes a passivated stainless steel body for durability. Operating across a frequency range from DC to 26 GHz, it maintains a standard 50 Ohm impedance. This single-row module is suitable for demanding microwave environments requiring stable signal reduction.

Feature Summary

• Fixed 7 dB attenuation performance
• Frequency operation up to 26 GHz
• Passivated stainless steel construction

Applications

• Microwave signal conditioning
• RF test and measurement setups
• Communication system signal reduction

Procurement Notes

Verify the specific model designation PE7087-7 against official Pasternack documentation to confirm the 7 dB attenuation value and 26 GHz frequency limit. Ensure connector compatibility matches SMA male-to-female requirements. Confirm that the 2 Watt power rating aligns with system specifications before procurement.

Selection Notes

Select this component when a fixed 7 dB reduction is required within a 50 Ohm system operating up to 26 GHz. Consider the passivated stainless steel housing for environmental protection. Verify that the SMA interface suits the existing circuit board or cable assembly connections without requiring additional adapters.

Part Context

This component belongs to the Pasternack PE7087 series of high-performance fixed attenuators. The series utilizes SMA connectors to extend operational frequency capabilities up to 26 GHz. These units are engineered for consistent performance in microwave applications, offering reliable signal attenuation with durable metal housings.

Replacement Considerations

PE7087-20

FAQ

What is the maximum operating frequency?

The PE7087-7 operates effectively up to 26 GHz.

What is the power handling capability?

The attenuator is rated for 2 Watts at the stated attenuation value.
