PE7087-8

Overview

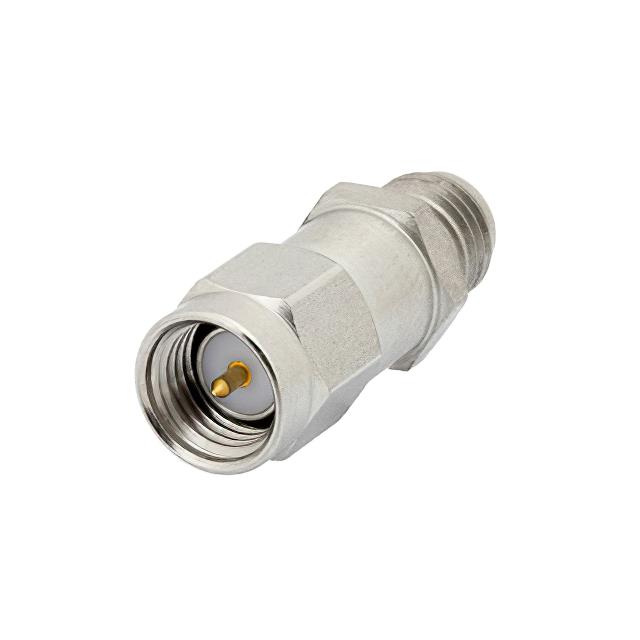

The Pasternack PE7087-8 is a fixed 8 dB coaxial attenuator designed for high-frequency applications. It features an SMA male to SMA female interface configuration housed in a passivated stainless steel body. The component operates with a characteristic impedance of 50 Ohms and supports frequencies up to 26 GHz. It is rated to handle a maximum power of 2 Watts at the stated attenuation value, ensuring stable performance in microwave systems.

Feature Summary

• Fixed 8 dB attenuation using resistive PI pad design
• Passivated stainless steel housing for durability
• SMA connector interface for reliable RF connection

Applications

• Microwave signal conditioning
• RF test and measurement setups
• Telecommunications equipment

Procurement Notes

Verify the specific datasheet version for the PE7087-8 to confirm current manufacturing status and compliance details. Ensure that the required frequency range up to 26 GHz and power rating of 2 Watts align with your system specifications before procurement. Cross-reference the SMA connector gender and passivation finish to match existing assembly requirements.

Selection Notes

Select this model when a precise 8 dB reduction is needed within the 50 Ohm system environment. The SMA interface suits standard laboratory and industrial RF connections. Consider the 26 GHz upper frequency limit and 2 Watt power handling as critical constraints for circuit integration.

Part Context

This component belongs to Pasternack's line of fixed coaxial attenuators. It utilizes a standard PI attenuator topology to provide consistent signal loss across its operational bandwidth. The stainless steel construction offers mechanical robustness suitable for repeated mating cycles in professional RF environments.

Replacement Considerations

Direct substitutes must maintain 8 dB attenuation, SMA connectors, and 50 Ohm impedance. Verify that alternative components support the same 26 GHz frequency range and 2 Watt power rating to ensure functional equivalence without modification.
