PE7088-0

Overview

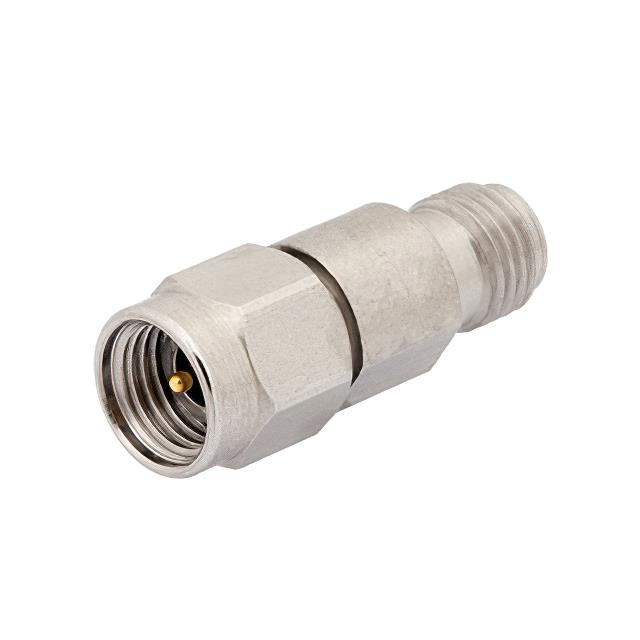

The Pasternack PE7088-0 is a 0 dB fixed attenuator featuring 2.92mm male to 2.92mm female connectors. It operates up to 40 GHz with an impedance of 50 Ohms and a maximum power rating of 1 Watt. The unit measures 0.87 inches in length and 0.312 inches in width, constructed with stainless steel connectors for durability.

Feature Summary

• Utilizes stainless steel 2.92mm connectors for robust performance
• Provides precise 0 dB attenuation within the specified frequency range
• Supports continuous wave power handling up to 1 Watt

Applications

• Microwave signal testing and measurement setups
• RF system calibration requiring zero-loss interconnects
• High-frequency circuit prototyping and evaluation

Procurement Notes

Verify the specific connector gender configuration matches the design requirements before integration. Confirm that the operating environment remains within the stated 1 Watt power limit to ensure component integrity. Check for RoHS compliance status if environmental regulations apply to the final assembly.

Selection Notes

Choose this model when a transparent interconnect is needed without introducing insertion loss or phase shift. Ensure the application frequency does not exceed 40 GHz to maintain specified performance characteristics. Consider the physical dimensions for space-constrained PCB or rack mounting scenarios.

Part Context

This component belongs to the PE7088 series of fixed attenuators from Pasternack Enterprises. The series includes various attenuation values ranging from 0 dB to 20 dB, all sharing the same 2.92mm connector interface and high-frequency specifications designed for microwave applications.

Replacement Considerations

Compatible substitutes include other 0 dB attenuators with 2.92mm male-to-female interfaces. Ensure replacement parts support at least 40 GHz operation and 1 Watt power handling. Verify dimensional compatibility for existing mounting hardware.
