PE7088-10

Overview

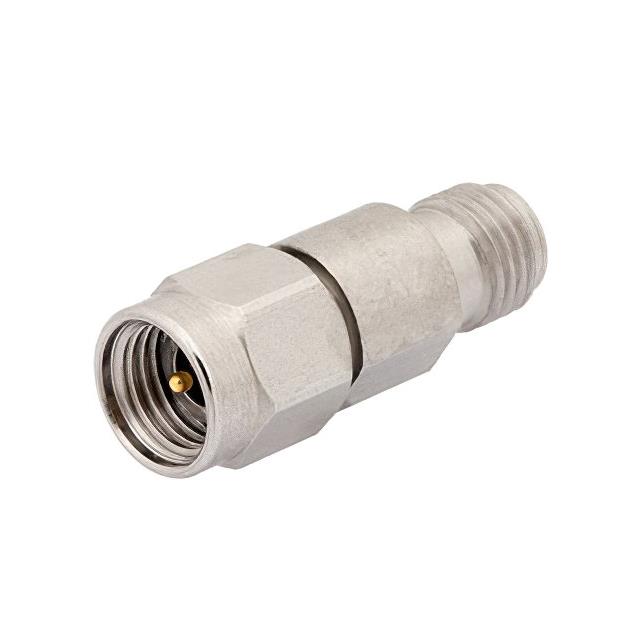

The Pasternack PE7088-10 is a fixed attenuator featuring 2.92mm male to 2.92mm female connectors with a stainless steel body. It provides a nominal attenuation of 10 dB, rated within a tolerance of ±1 dB. The device operates across a frequency range from DC to 40 GHz and supports a maximum power handling capacity of 1 Watt. This bidirectional component ensures signal level reduction in high-frequency RF applications requiring precise impedance matching and stable performance.

Feature Summary

• Bidirectional signal attenuation capability for flexible circuit integration
• Stainless steel housing providing mechanical durability and shielding
• Precision 2.92mm connector interface ensuring consistent impedance characteristics

Applications

• High-frequency RF test and measurement setups
• Signal conditioning in wireless communication infrastructure
• Microwave system calibration and power management

Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm current technical specifications and compliance status. Ensure that the required frequency range and power handling align with the application's operational demands before finalizing procurement decisions.

Selection Notes

Select this component when a fixed 10 dB attenuation value is required within a 2.92mm connector system. Consider the 40 GHz upper frequency limit and 1 Watt power rating to ensure compatibility with the target RF environment and signal levels.

Part Context

This attenuator belongs to the category of passive RF components designed for signal management. It serves as a critical element for reducing signal amplitude without introducing significant distortion, supporting systems that require precise control over RF power levels across wide bandwidths.

Replacement Considerations

No public confirmed substitute part numbers are available.
