PE7088-2

Overview

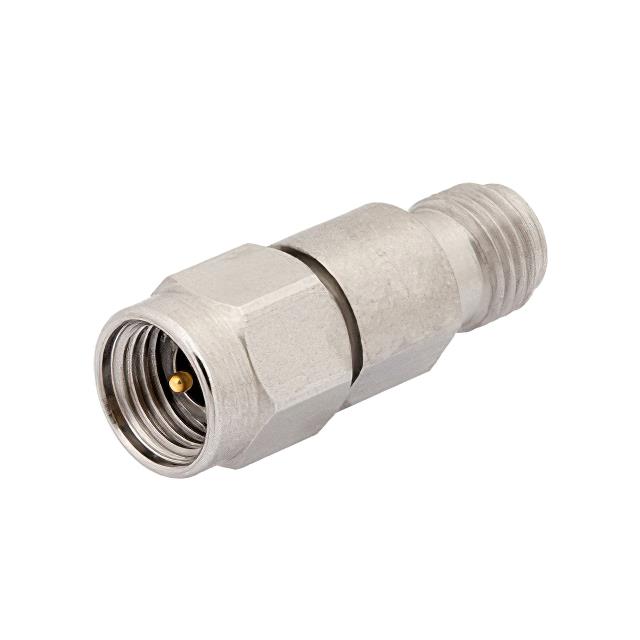

The Pasternack PE7088-2 is a fixed RF attenuator designed for high-frequency applications. It features a 2.92mm male-to-female interface configuration, ensuring compatibility with precision coaxial systems. The component provides a nominal attenuation of 2 dB across a frequency range extending from 0 Hz to 40 GHz. It operates with a 50 Ohm impedance and supports a maximum power handling capacity of 1 Watt. Constructed as an in-line module, it utilizes stainless steel housing for durability and environmental resistance.

Feature Summary

• Provides precise 2 dB signal attenuation for RF circuitry
• Operates effectively up to 40 GHz frequency range
• Features robust stainless steel construction for reliability

Applications

• Signal level adjustment in microwave test equipment
• Impedance matching in high-frequency communication systems
• Protection of sensitive receiver inputs in radar systems

Procurement Notes

Verify the specific connector gender and interface type (2.92mm) against system requirements before procurement. Confirm that the 1W power rating and 40 GHz frequency limit align with operational parameters. Ensure compatibility with existing mounting hardware for in-line module installation. Check for any specific environmental sealing requirements if used in harsh conditions.

Selection Notes

Select this model when a low-loss, high-frequency fixed attenuation value is required. The 2.92mm interface offers superior performance over standard SMA connectors at higher frequencies. Consider the stainless steel build for enhanced mechanical stability. Ensure the 50 Ohm system impedance matches the rest of the transmission line to minimize reflections.

Part Context

This component belongs to Pasternack's portfolio of RF and microwave passive components. It serves as a specialized tool for managing signal strength in millimeter-wave applications. The product line emphasizes precision engineering for demanding industrial and scientific environments.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify exact interface dimensions and electrical specifications when evaluating alternative manufacturers.
