PE7088-20

Overview

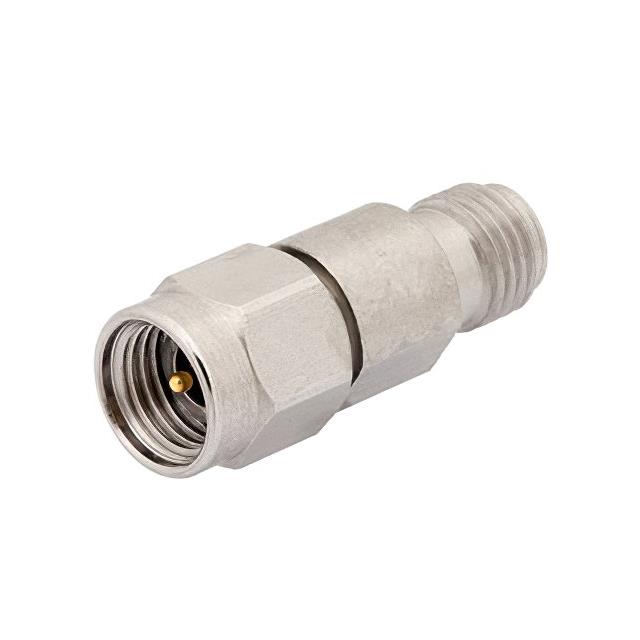

The Pasternack PE7088-20 is a fixed 20 dB attenuator featuring 2.92mm male to 2.92mm female connectors. It utilizes an in-line, resistive PI attenuator pad design within a coaxial 50-ohm system. The unit is rated for operation up to 40 GHz and supports a power handling capacity of up to 1 Watt. The housing consists of passivated stainless steel.

Feature Summary

• Fixed 20 dB attenuation value provided by a resistive PI pad design
• Operational frequency range extending up to 40 GHz
• Passivated stainless steel body construction

Applications

• Signal level reduction in high-frequency test setups
• Impedance matching in 50-ohm RF systems
• Protection of sensitive measurement instruments from high power

Procurement Notes

Verify the specific connector gender configuration matches the requirement of male-to-female termination. Confirm that the 1 Watt power rating and 40 GHz frequency limit align with the intended application parameters before finalizing the order.

Selection Notes

Select this component when a precise 20 dB reduction is required at frequencies approaching 40 GHz. Ensure the system impedance is 50 ohms to maintain signal integrity. Consider the physical dimensions and mounting requirements associated with the stainless steel housing.

Part Context

This model belongs to the Pasternack family of fixed attenuators designed for microwave applications. It shares the 2.92mm interface standard with other high-frequency components in the series, ensuring compatibility with existing test infrastructure.

Replacement Considerations

PE7088-2
