PE7088-30

Overview

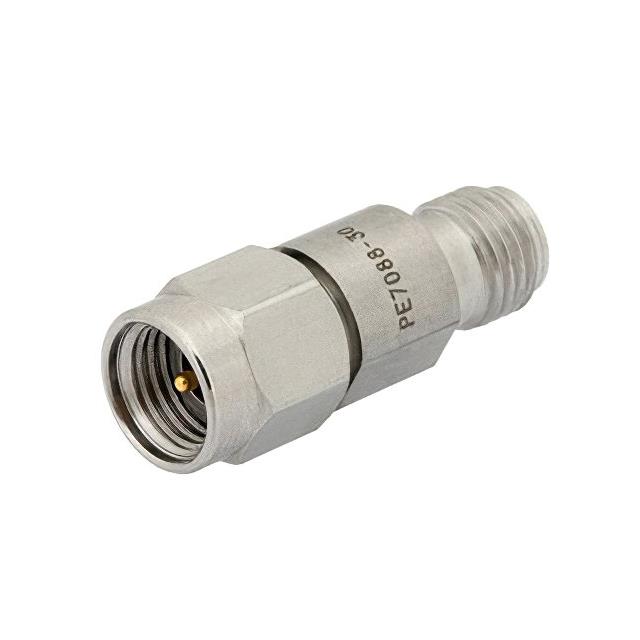

The Pasternack PE7088-30 is a fixed 30 dB attenuator featuring a 2.92mm male to 2.92mm female interface. It utilizes an in-line, resistive PI attenuator pad design within a coaxial 50 Ohm system. The component operates across a frequency range of 0 Hz to 40 GHz and supports a power rating of up to 1 Watt. The housing consists of a passivated stainless steel body, ensuring durability and consistent performance in high-frequency applications.

Feature Summary

• In-line resistive PI attenuator pad design for stable signal attenuation
• Passivated stainless steel body construction for environmental durability
• Compatible with 50 Ohm coaxial systems using 2.92mm connectors

Applications

• High-frequency test and measurement setups requiring precise signal reduction
• RF circuit protection and impedance matching in microwave systems
• Signal conditioning in communication equipment operating up to 40 GHz

Procurement Notes

Verify the specific connector gender configuration (male to female) matches the system requirements. Confirm that the 1 Watt power handling capacity is sufficient for the intended application environment. Ensure compatibility with 50 Ohm systems and validate that the 2.92mm interface aligns with existing infrastructure components.

Selection Notes

Select this model when a fixed 30 dB attenuation value is required within a 50 Ohm system. The 2.92mm interface supports frequencies up to 40 GHz, making it suitable for advanced microwave applications. Consider the passivated stainless steel body for robustness in demanding environments compared to other material options.

Part Context

This component belongs to Pasternack's series of fixed RF attenuators designed for precision signal control. The PE7088-30 specifically addresses needs for significant signal reduction in high-frequency circuits. Its standardized 2.92mm interface ensures interoperability with common microwave test equipment and modules.

Replacement Considerations

Substitute only with verified equivalent part numbers offering identical 30 dB attenuation, 2.92mm interfaces, and 50 Ohm impedance. Ensure replacement units maintain the same 40 GHz frequency range and 1 Watt power rating to preserve system integrity.
