PE7088-5

Overview

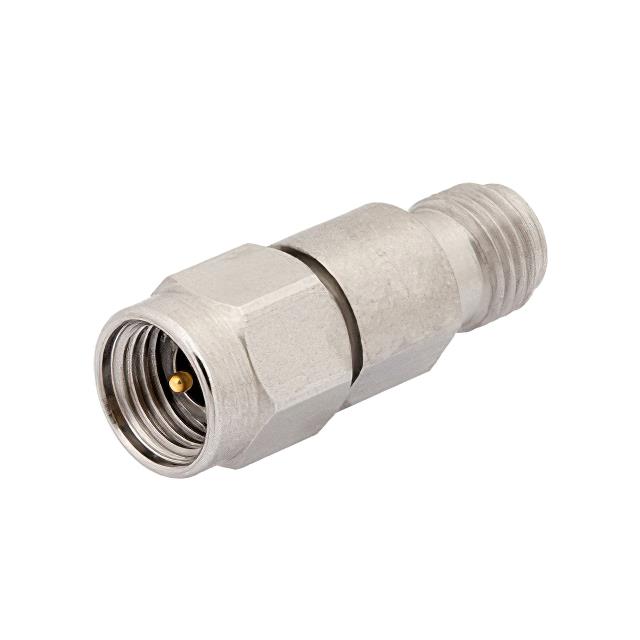

The Pasternack PE7088-5 is a fixed attenuator designed for high-frequency RF applications. It features a 2.92mm male connector on one side and a 2.92mm female connector on the other, providing a precise attenuation value of 5 dB. The component operates within a frequency range of 0 Hz to 40 GHz and maintains a characteristic impedance of 50 Ohms. Constructed with a passivated stainless steel body, it supports a maximum power handling capacity of 1 Watt. The unit exhibits a maximum Voltage Standing Wave Ratio (VSWR) of 1.4:1, ensuring signal integrity across its operational bandwidth.

Feature Summary

• Provides fixed 5 dB attenuation for signal level control in RF circuits
• Utilizes 2.92mm gendered connectors for secure interconnection
• Operates at frequencies up to 40 GHz with stable impedance
• Features a durable passivated stainless steel housing

Applications

• Semiconductor equipment connections
• Medical device connections
• Test and measurement instrumentation

Procurement Notes

Verify the specific attenuation value and connector gender configuration against project requirements. Confirm that the 1 Watt power rating and 40 GHz frequency limit align with system specifications. Ensure the 2.92mm interface matches existing cabling infrastructure. Check for any environmental or material compliance documentation if required by the application standards.

Selection Notes

Select this component when a precise 5 dB reduction is needed in high-frequency systems. The 2.92mm interface offers superior performance compared to standard SMA or N-type connectors at frequencies above 18 GHz. Consider the 1 Watt power limit for thermal management in high-power environments. The stainless steel construction provides robustness for industrial settings.

Part Context

This part belongs to Pasternack's series of fixed attenuators utilizing 2.92mm connectors. These components are engineered for precision in microwave and millimeter-wave applications. The series includes various attenuation values and configurations to support diverse RF design needs. The 2.92mm interface ensures compatibility with high-performance test equipment and communication systems.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
