PE7088-7

Overview

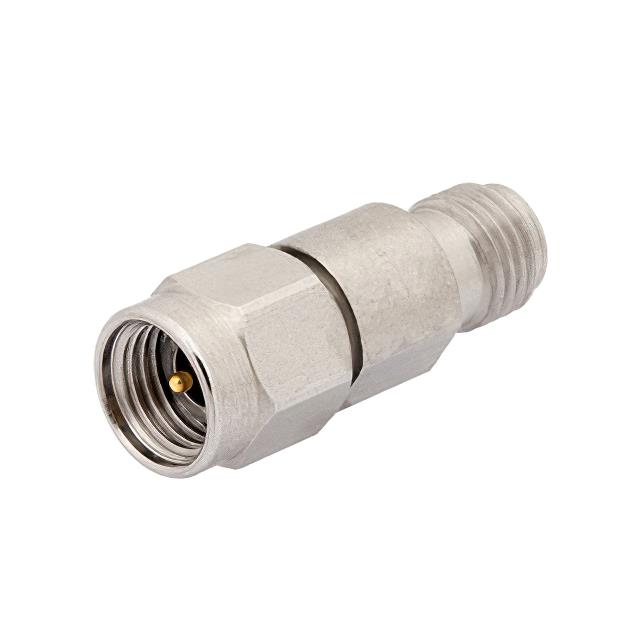

The Pasternack PE7088-7 is a fixed attenuator featuring 2.92mm male to 2.92mm female connectors. It provides an attenuation value of 7 dB with a 50 Ohm impedance. The device supports frequencies up to 40 GHz and handles a maximum power of 1 Watt. Constructed with stainless steel components, it ensures reliable signal reduction in high-frequency applications.

Feature Summary

• Stainless steel construction for durability
• 2.92mm connector interface compatibility
• Fixed attenuation performance

Applications

• RF signal level adjustment
• Test and measurement setups
• High-frequency circuit protection

Procurement Notes

Verify the specific attenuation value matches system requirements before purchase. Confirm connector gender and interface type align with existing infrastructure. Check frequency range specifications to ensure operation within the 40 GHz limit. Review power handling capabilities against actual signal levels.

Selection Notes

Choose this model when precise 7 dB attenuation is required at microwave frequencies. Ensure the 2.92mm interface suits the connected equipment. Consider the 1 Watt power rating for appropriate thermal management. Stainless steel housing offers robustness for demanding environments.

Part Context

This component belongs to the PE7088 series of fixed attenuators from Pasternack. The series utilizes 2.92mm connectors for high-frequency stability. Other variants in the line offer different attenuation values while maintaining similar physical and electrical characteristics.

Replacement Considerations

Direct substitutes include other 7 dB fixed attenuators with 2.92mm interfaces. Verify impedance matching and frequency response overlap. Physical dimensions should be checked for space constraints.
