PE7089-0

Overview

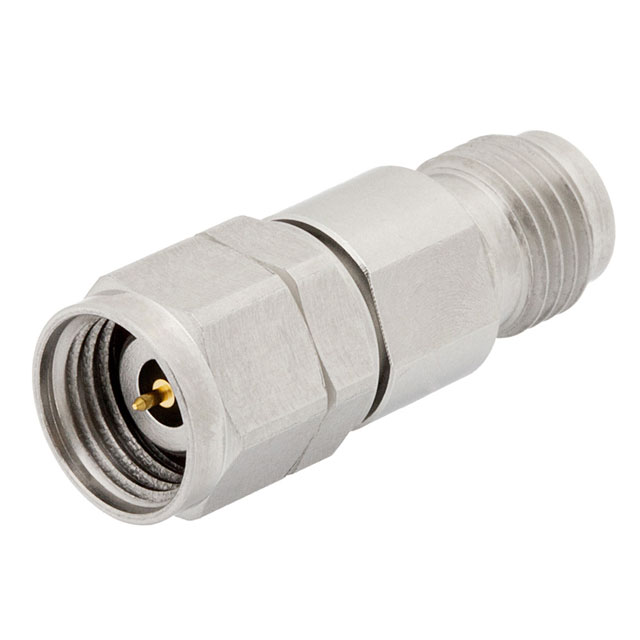

The Pasternack PE7089-0 is a fixed attenuator rated for operation up to 50 GHz. It features a 2.4mm male connector on one side and a 2.4mm female connector on the other, with a passivated stainless steel body. The device provides 0 dB attenuation and is rated for 1 Watt of power at the stated attenuation value.

Feature Summary

• Provides 0 dB signal attenuation
• Operates up to 50 GHz frequency range
• Features 2.4mm male to female interface
• Constructed with passivated stainless steel body

Applications

• Microwave test and measurement setups
• Signal chain calibration
• RF system interconnects requiring zero insertion loss

Procurement Notes

Verify the specific model number PE7089-0 against official Pasternack documentation to confirm the 0 dB attenuation rating and 50 GHz frequency limit. Ensure compatibility with 2.4mm connector interfaces in your system design before procurement.

Selection Notes

Select this component when a zero-loss interconnect is required within a 50 GHz microwave environment. Confirm that the 1 Watt power handling capacity meets your system's maximum input power requirements and that the 2.4mm gender configuration matches your cabling or fixture needs.

Part Context

This part belongs to the PE7089 series of fixed attenuators from Pasternack Enterprises. The series includes various attenuation values (e.g., 1, 3, 5, 6, 7 dB) sharing the same 2.4mm male-to-female form factor and 50 GHz operational rating.

Replacement Considerations

Pasternack PE7089-1, PE7089-3, PE7089-5, PE7089-6, and PE7089-7 are alternative models within the same series offering different attenuation values but identical connector types and frequency ratings.
