PE7089-10

Overview

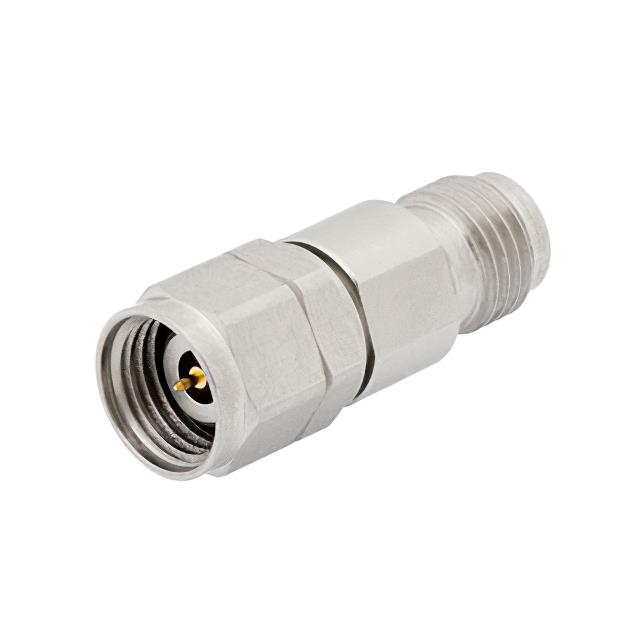

The Pasternack PE7089-10 is a fixed 10 dB attenuator designed for high-frequency RF applications. It features a 2.4mm male connector on one side and a 2.4mm female connector on the other, ensuring precise impedance matching within a 50 Ohm system. The device utilizes an inline resistive PI attenuator pad design to provide stable attenuation performance. Constructed with a passivated stainless steel body, it offers durability and corrosion resistance. This component is rated for operation up to 50 GHz and can handle power levels up to 2 Watts, making it suitable for demanding microwave environments.

Feature Summary

• Utilizes an inline resistive PI attenuator pad design for consistent signal reduction
• Features a robust passivated stainless steel body for environmental durability
• Provides precise 50 Ohm impedance matching between 2.4mm connectors

Applications

• Microwave test and measurement setups requiring precise signal attenuation
• RF circuit testing and characterization at frequencies up to 50 GHz
• Signal conditioning in high-frequency communication systems

Procurement Notes

Verify the specific datasheet version provided by Pasternack Enterprises, Inc., as specifications may vary between revisions. Confirm that the 2.4mm connector gender configuration matches your system requirements exactly. Ensure that the operating frequency does not exceed the 50 GHz rating and that power levels remain within the 2 Watt limit to prevent damage. Cross-reference the manufacturer part number with official distributor catalogs to ensure authenticity and availability of current production units.

Selection Notes

Select this component when a fixed 10 dB attenuation value is required in a 50 Ohm system using 2.4mm interfaces. It is appropriate for applications needing high-frequency stability up to 50 GHz. Consider the physical size and mounting constraints associated with the stainless steel body. Ensure compatibility with existing 2.4mm cable assemblies or fixtures. This model is distinct from variable attenuators or adapters with different connector types.

Part Context

This part belongs to the Pasternack series of RF fixed attenuators. It is categorized under connectorized attenuators designed for interconnect applications. The product line focuses on providing reliable signal control solutions for microwave and millimeter-wave frequencies. The PE7089-10 specifically addresses the need for precision attenuation in small form-factor 2.4mm systems.

Replacement Considerations
