PE7089-12

Overview

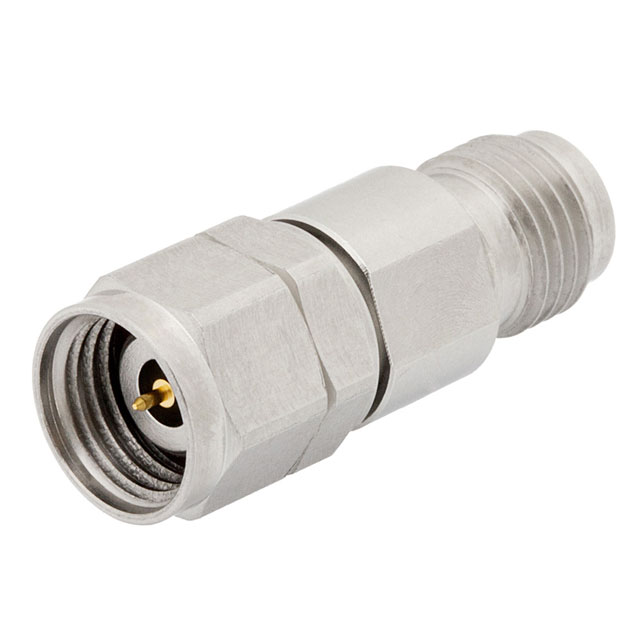

The Pasternack PE7089-12 is a fixed attenuator providing 12 dB attenuation with a frequency range of 0 Hz to 50 GHz. It features 2.4mm male-to-female connectors and a passivated stainless steel body. The device handles 1 Watt of power at the stated attenuation value.

Feature Summary

• Provides precise 12 dB signal reduction for high-frequency applications
• Operates across a wide bandwidth from DC to 50 GHz
• Constructed with durable passivated stainless steel housing

Applications

• Microwave test and measurement setups
• Signal level adjustment in RF circuits
• Component characterization within high-frequency systems

Procurement Notes

Verify the specific part number PE7089-12 against official Pasternack documentation to confirm the 12 dB attenuation rating and 50 GHz frequency limit. Ensure compatibility with 2.4mm connector interfaces and 50 Ohm system impedance before integration.

Selection Notes

Select this component when a fixed 12 dB loss is required in microwave environments up to 50 GHz. Consider the 1W power handling capacity and the robust stainless steel construction for reliable performance in demanding RF applications.

Part Context

This model belongs to the Pasternack PE7089 series of 2.4mm fixed attenuators. Other variants in this family include different attenuation values such as 2, 4, 6, 7, 10, and 20 dB, all sharing similar connector types and frequency ratings.

Replacement Considerations

Direct substitutes may include other manufacturers' 2.4mm fixed attenuators with identical 12 dB attenuation, 50 GHz operation, and 50 Ohm impedance. Verify mechanical dimensions and connector gender compatibility.
