PE7089-15

Overview

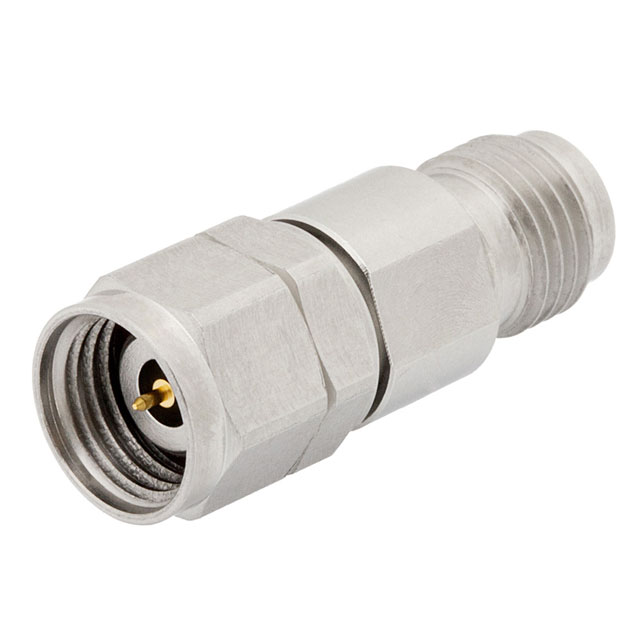

The Pasternack PE7089-15 is a fixed coaxial attenuator module designed for high-frequency applications. It provides a precise attenuation value of 15 dB across an operational frequency range from 0 Hz to 50 GHz. The component utilizes 2.4mm connectors, featuring a male-to-female interface configuration. Constructed with a passivated stainless steel body, it ensures durability and signal integrity in demanding environments. The unit is rated for a maximum power handling capacity of 1 Watt up to its specified frequency limit.

Feature Summary

• Provides fixed 15 dB attenuation
• Operates from DC to 50 GHz
• Features 2.4mm male-to-female connectors
• Constructed with passivated stainless steel

Applications

• High-frequency test and measurement setups
• Signal conditioning in RF circuits
• Attenuation requirements in microwave systems

Procurement Notes

Verify the specific connector gender and impedance matching against system requirements before integration. Confirm that the 1 Watt power rating aligns with the expected signal levels in the application circuit. Ensure compatibility with 2.4mm mating interfaces to maintain optimal performance within the 50 GHz frequency range.

Selection Notes

Select this model when a fixed 15 dB reduction is required at frequencies extending up to 50 GHz. The 2.4mm interface is suitable for compact, high-performance RF designs. Consider the power handling limits relative to the input signal strength to prevent damage or performance degradation during operation.

Part Context

This component belongs to the Pasternack RF Attenuators category, specifically within the coaxial attenuator sub-type. It serves as a passive device for controlling signal amplitude in radio frequency systems. The product line focuses on providing reliable attenuation solutions using various connector types and materials for diverse engineering needs.

Replacement Considerations

No public confirmed substitute part numbers are available.
