PE7089-20

$521.56

Description：20 DB FIXED ATTENUATOR, 2.4MM MA
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:43ec042cc14d Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：20 DB FIXED ATTENUATOR, 2.4MM MA
Series：-
Mfr：Pasternack
Package：Retail Package
Attenuation Value：20dB
Frequency Range：0 Hz ~ 50 GHz
Power (Watts)：1W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：2.4mm In-Line Module

Download product information

PE7089-20

Overview

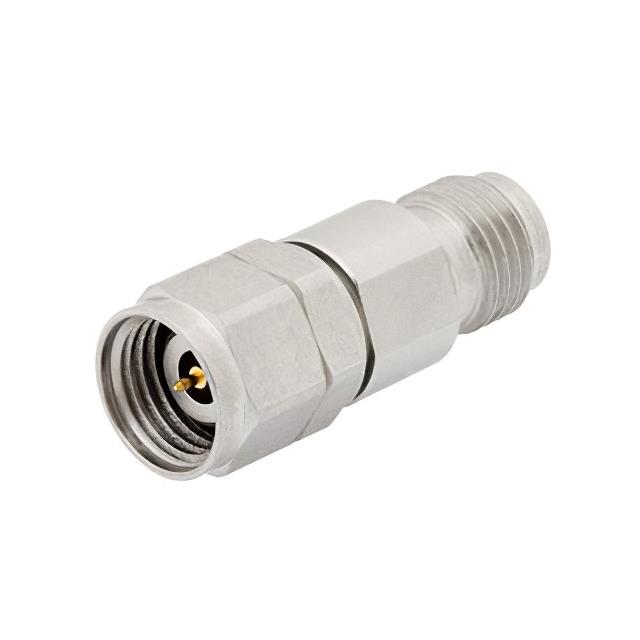

The Pasternack PE7089-20 is a fixed attenuator featuring 2.4mm male to 2.4mm female connectors. It provides a nominal attenuation of 20 dB with a 50 Ohm impedance. The device operates within a frequency range of 0 Hz to 50 GHz and is rated for 1 Watt of power handling at the stated attenuation value. The unit utilizes a stainless steel body construction.

Feature Summary

Fixed attenuation design with 20 dB nominal value
Operates up to 50 GHz frequency range
Stainless steel body construction

Applications

Microwave signal conditioning
RF test and measurement setups
Signal level reduction in high-frequency circuits

Procurement Notes

Verify the specific connector gender configuration matches the system requirements, as the model indicates male-to-female orientation. Confirm that the 1 Watt power rating aligns with the operational thermal limits of the application environment. Ensure the 50 GHz frequency capability meets the highest frequency component of the signal spectrum being processed.

Selection Notes

Select this component when a precise 20 dB reduction is required in systems operating up to 50 GHz. Consider the 2.4mm interface compatibility with existing cabling and fixtures. Evaluate the power handling capacity against peak signal levels to ensure reliable operation without thermal degradation or performance drift.

Part Context

This part belongs to the Pasternack PE7089 series of fixed attenuators. The series includes various attenuation values such as 1 dB, 6 dB, and 7 dB, all sharing similar 2.4mm connector interfaces and 50 GHz frequency ratings. These components are designed for consistent performance in microwave applications requiring stable signal attenuation.

Replacement Considerations

Compatible substitutes include other Pasternack models within the PE7089 series offering different attenuation values but identical 2.4mm interfaces and frequency ranges. Verify that any replacement maintains the 50 Ohm impedance and 1 Watt power rating to ensure system integrity.
