PE7089-8

Overview

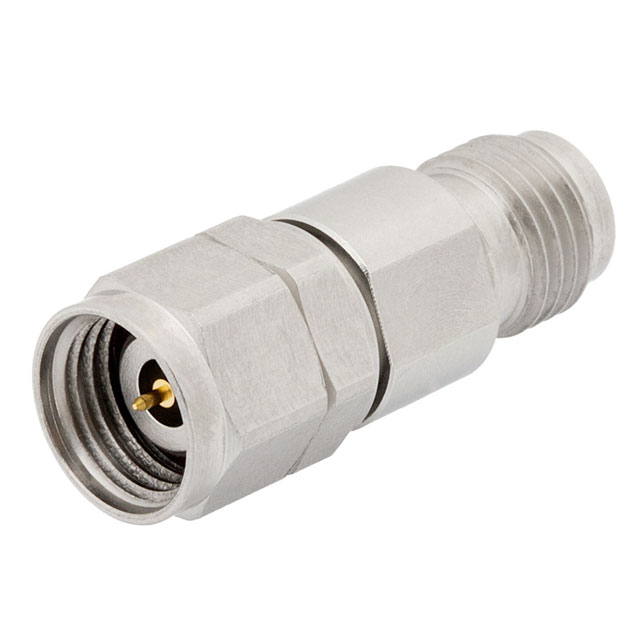

The Pasternack PE7089-8 is an 8 dB fixed attenuator featuring 2.4mm male to 2.4mm female connectors. It operates within a frequency range of DC to 50 GHz and has a power rating of 1 Watt at the stated attenuation value. The unit typically exhibits a VSWR of less than 1.75:1. Constructed with a passivated stainless steel body, it supports bidirectional signal flow.

Feature Summary

• Bidirectional operation capability
• Passivated stainless steel construction

Applications

• Microwave test and measurement systems
• Signal level adjustment in RF circuits
• Impedance matching applications

Procurement Notes

Verify the specific connector gender configuration (male-to-female) and frequency range against system requirements. Confirm that the 1 Watt power rating aligns with operational limits. Ensure compatibility with 2.4mm interfaces for proper integration into high-frequency setups.

Selection Notes

Select this component when precise 8 dB attenuation is required up to 50 GHz. Consider the 2.4mm interface size constraints and the need for bidirectional functionality. Evaluate the passivated stainless steel housing for environmental durability in demanding applications.

Part Context

This model belongs to Pasternack's line of fixed microwave attenuators designed for high-frequency performance. It provides stable attenuation characteristics across a wide bandwidth, suitable for precision RF engineering tasks requiring reliable signal reduction without distortion.

Replacement Considerations

PE7089-7 offers 7 dB attenuation with identical connector types and frequency range.
