PE7090-20

Overview

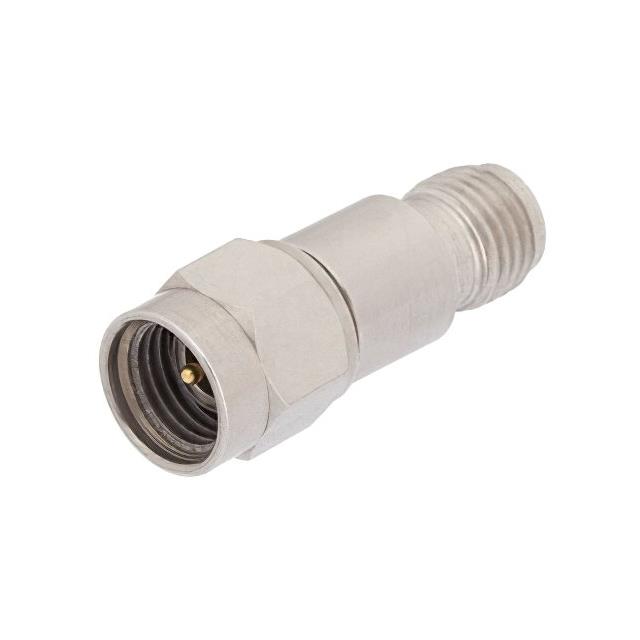

The Pasternack PE7090-20 is a fixed RF attenuator designed for high-frequency applications. It provides a nominal attenuation of 20 dB with a frequency range extending from 0 Hz to 40 GHz. The device features a 50 Ohm impedance and utilizes 2.92mm connectors, specifically male on one side and female on the other. It is rated for a maximum power handling capacity of 2 Watts. The unit employs an in-line module configuration.

Feature Summary

• Supports operation up to 40 GHz frequency range
• Utilizes 2.92mm connector interface
• Rated for 2 Watts maximum power handling

Applications

• High-frequency signal testing
• RF circuit attenuation
• Microwave system integration

Procurement Notes

Verify the specific datasheet version for the PE7090-20 to confirm exact mechanical dimensions and connector gender orientation. Ensure compatibility with 2.92mm mating interfaces. Confirm power rating requirements align with the 2 Watt specification. Check for any specific environmental operating conditions listed in official documentation before procurement.

Selection Notes

Select this component when a 20 dB attenuation value is required within a 40 GHz bandwidth. The 2.92mm interface dictates compatibility with corresponding coaxial systems. Consider the 2 Watt power limit for thermal management. Compare against other Pasternack models like PE7090-10 or PE7090-30 if different attenuation levels are needed.

Part Context

This model belongs to the Pasternack PE7090 series of fixed attenuators. The series offers various attenuation values including 3, 6, 10, 15, 20, and 30 dB. All variants in this series share the same 2.92mm connector type and 40 GHz frequency capability, differing primarily in their attenuation specifications.

Replacement Considerations

Direct substitutes include other Pasternack PE7090 series units with identical 2.92mm connectors and 40 GHz ratings but different attenuation values, such as PE7090-10 or PE7090-30, if the 20 dB value is flexible. No cross-brand replacements are confirmed without verifying connector and frequency specs.
