PE7091-1

Overview

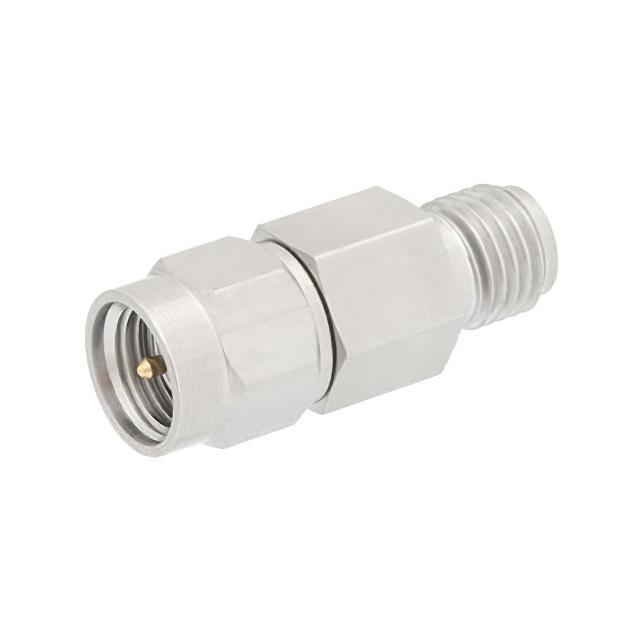

The Pasternack PE7091-1 is a fixed coaxial attenuator providing exactly 1 dB of attenuation. It features SMA male to SMA female connectors and utilizes a passivated stainless steel body for durability. The component is rated for up to 2 Watts of power handling and operates effectively up to 6 GHz frequency range.

Feature Summary

• Fixed 1 dB attenuation value
• SMA male to SMA female interface
• Passivated stainless steel construction

Applications

• RF signal level adjustment
• Impedance matching in test setups
• Signal attenuation in microwave circuits

Procurement Notes

Verify the specific model suffix against official documentation to ensure correct attenuation value and connector type. Confirm RoHS compliance status through manufacturer datasheets prior to integration. Check for any regional distribution restrictions or availability constraints directly with authorized suppliers before finalizing procurement plans.

Selection Notes

Select this component when a precise 1 dB reduction is required within a 50 Ohm system. Ensure the operating frequency does not exceed 6 GHz and power levels remain below 2 Watts. Verify that SMA connectors match the existing circuit board or cable assembly interfaces for proper mechanical and electrical compatibility.

Part Context

This part belongs to the Pasternack PE7091 series of fixed attenuators. The series offers various attenuation values from 1 dB to higher levels, all sharing similar SMA connector configurations and stainless steel housing designs. These components are designed for consistent performance across microwave frequencies.

Replacement Considerations

• PE7091-1 (Same Part)
• Pasternack equivalents with identical 1 dB rating and SMA interfaces

FAQ

What is the maximum power rating?

The PE7091-1 is rated for up to 2 Watts.

What is the frequency range?

It operates up to 6 GHz.
