PE7091-10

Overview

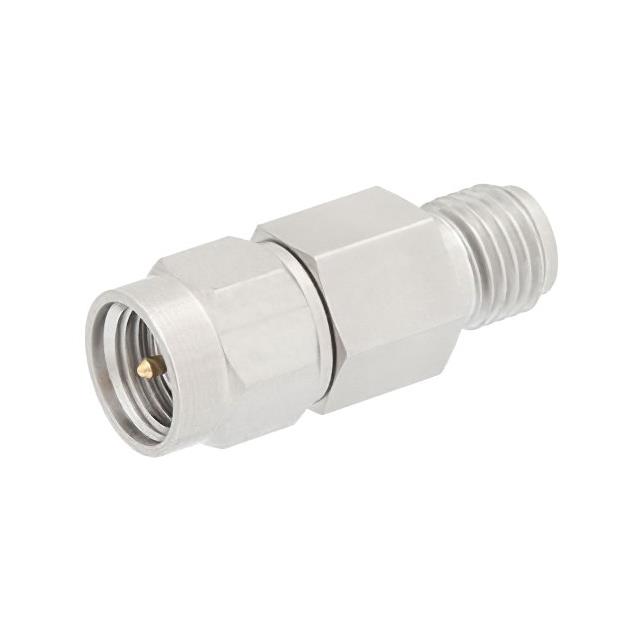

The Pasternack PE7091-10 is a fixed RF attenuator designed for microwave applications. It provides a precise attenuation value of 10 dB with SMA male to SMA female connectors. The device features a passivated stainless steel body for durability and environmental resistance. It is rated for operation up to 6 GHz frequency range. The unit supports a maximum power handling capacity of 2 Watts at the stated attenuation value. This component serves as a reliable solution for signal level reduction in coaxial systems.

Feature Summary

• Fixed 10 dB attenuation performance
• SMA male to SMA female interface configuration
• Passivated stainless steel housing construction
• Operational frequency rating up to 6 GHz

Applications

• Microwave signal level control
• RF test and measurement setups
• Coaxial circuit impedance matching networks
• Signal attenuation in communication systems

Procurement Notes

Verify the specific part number PE7091-10 against official Pasternack documentation to confirm the 10 dB attenuation value and SMA connector types. Ensure the application environment does not exceed the 2 Watt power rating or 6 GHz frequency limit. Check for RoHS compliance status if required by project specifications. Confirm that the passivated stainless steel body meets material requirements for the intended installation conditions.

Selection Notes

Select this component when a fixed 10 dB reduction is required in an SMA-based system. Consider the 2 Watt power handling capability relative to the expected signal levels. Evaluate the 6 GHz upper frequency limit against the operational bandwidth needs. The stainless steel body offers robustness suitable for various mounting environments compared to plastic alternatives.

Part Context

This component belongs to the Pasternack PE7091 series of fixed attenuators. The series includes variants with different attenuation values such as 1 dB, 3 dB, and 12 dB. All units in this family share the same SMA male-to-female connector style and similar stainless steel body construction. The PE7091-10 specifically addresses the need for moderate signal reduction in high-frequency applications.

Replacement Considerations

Direct substitutes include other PE7091 series models like PE7091-12 for higher attenuation or PE7091-1 for lower attenuation. Cross-brand replacements must match the SMA interface, 10 dB value, 6 GHz limit, and 2 Watt power rating. Verify connector gender and body material compatibility before substitution.
