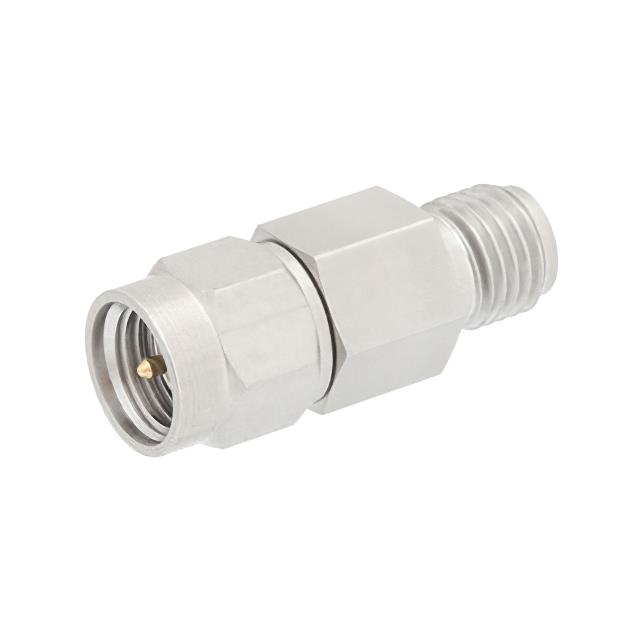

PE7091-2

Description：2 dB Fixed Attenuator, SMA Male
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:2576e9de039d Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：2 dB Fixed Attenuator, SMA Male
Series：-
Mfr：Pasternack
Package：Retail Package
Attenuation Value：2dB
Frequency Range：0 Hz ~ 6 GHz
Power (Watts)：2W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：SMA In-Line Module

Download product information

PE7091-2

Overview

The Pasternack PE7091-2 is a fixed RF attenuator with an attenuation value of 2 dB. It operates within a frequency range of 0 Hz to 6 GHz and is rated for 2 Watts at the stated attenuation value. The component features SMA male to SMA female connectors and utilizes a passivated stainless steel body.

Feature Summary

Fixed attenuation design providing consistent signal reduction
Passivated stainless steel construction for durability
SMA connector interface for standard coaxial integration

Applications

RF signal level adjustment in microwave circuits
Impedance matching in test and measurement setups
Signal conditioning in communication systems up to 6 GHz

Procurement Notes

Verify the specific part number PE7091-2 against official Pasternack documentation to confirm the 2 dB attenuation rating and SMA gender configuration. Ensure the required power handling of 2 Watts aligns with system specifications. Confirm the frequency range requirement does not exceed 6 GHz before procurement.

Selection Notes

Select this component when a precise 2 dB reduction is required for signals up to 6 GHz. Consider the 2 Watt power rating for thermal management. The SMA interface dictates compatibility with existing connector types. Verify that the passivated stainless steel housing meets environmental requirements for the intended installation.

Part Context

This model belongs to the PE7091 series of fixed attenuators from Pasternack. The series includes variants with different attenuation values, such as 3 dB, 6 dB, and 20 dB, all sharing similar frequency and power characteristics. The PE7091-2 specifically denotes the 2 dB attenuation variant within this product line.

Replacement Considerations

Compatible substitutes include other Pasternack models from the same series with identical electrical ratings, such as PE7091-3 or PE7091-6, provided the specific attenuation value matches the circuit design requirements. Cross-brand replacements must match the 2 dB attenuation, 6 GHz frequency limit, and 2 Watt power handling.
