PE7091-30

Overview

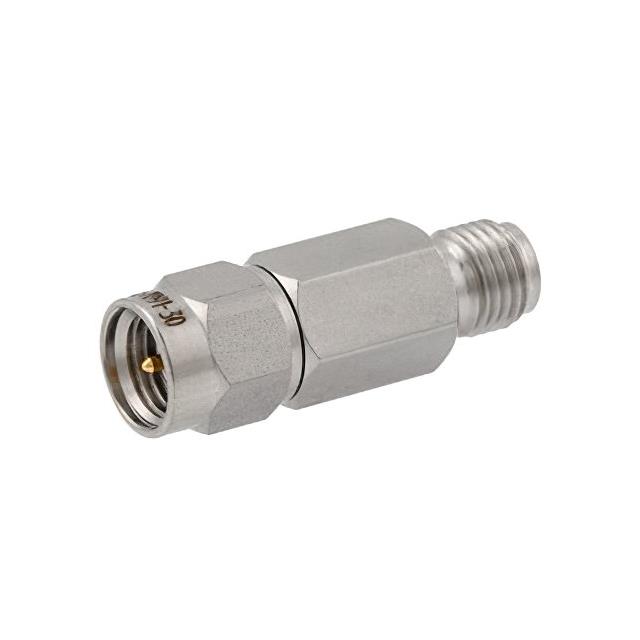

The Pasternack PE7091-30 is a fixed RF attenuator designed for microwave applications. It provides a nominal attenuation of 30 dB with SMA male to SMA female connectors. The device operates from DC to 6 GHz and is rated for up to 2 Watts power handling. Constructed with a passivated stainless steel body, it ensures durability in demanding environments.

Feature Summary

• Fixed 30 dB attenuation value
• SMA male to SMA female interface
• Passivated stainless steel construction

Applications

• RF signal level reduction
• Microwave circuit testing
• Signal conditioning in communication systems

Procurement Notes

Verify the specific model number against official Pasternack documentation to confirm connector type and attenuation value. Ensure compatibility with system frequency ranges up to 6 GHz and power requirements not exceeding 2 Watts. Check for any specific environmental ratings or certifications required for the intended application.

Selection Notes

Select this component when a precise 30 dB attenuation is required within the DC to 6 GHz range. Consider the SMA connector interface for compatibility with existing test equipment or circuit boards. Evaluate the 2 Watt power rating against maximum expected signal levels to prevent damage.

Part Context

This part belongs to the Pasternack PE7091 series of fixed attenuators. The series offers various attenuation values using similar SMA connector configurations and robust stainless steel housing designs suitable for general RF and microwave use.

Replacement Considerations

Direct substitutes include other Pasternack models with identical 30 dB attenuation and SMA interfaces, such as those from compatible manufacturers offering equivalent DC-6 GHz performance and 2W power ratings.
