PE7092-1

Overview

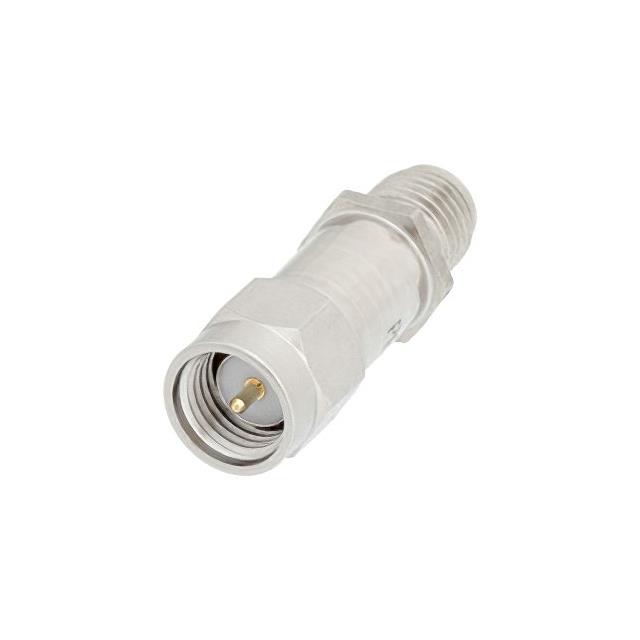

The Pasternack PE7092-1 is a fixed coaxial attenuator providing 1 dB attenuation. It operates from DC to 18 GHz with a 50 Ohm impedance. The device handles 2 Watts of power at the stated attenuation value. It features an SMA male to SMA female connector configuration housed in a passivated stainless steel body.

Feature Summary

• Fixed 1 dB attenuation
• SMA male to SMA female interface
• Passivated stainless steel construction

Applications

• RF signal level adjustment
• Test and measurement setups
• Microwave circuit integration

Procurement Notes

Verify the specific part number against official Pasternack documentation to confirm the 1 dB attenuation rating and SMA gender configuration. Ensure the application environment remains within the specified 2 Watt power handling limit and 18 GHz frequency range. Confirm that the passivated stainless steel housing meets environmental requirements for the intended deployment scenario.

Selection Notes

Select this component when a precise 1 dB reduction is required in high-frequency applications up to 18 GHz. The SMA interface ensures compatibility with standard RF systems. Consider the 2 Watt power rating for thermal management in continuous operation scenarios.

Part Context

This model belongs to the PE7092 series of fixed attenuators from Pasternack. The series offers various attenuation values while maintaining consistent SMA connectivity and frequency performance up to 18 GHz, designed for reliable microwave signal control.

Replacement Considerations

Compatible substitutes include other 1 dB fixed attenuators with SMA male-to-female interfaces and similar frequency/power ratings. Verify mechanical dimensions and VSWR specifications to ensure direct interchangeability without system modification.
