PE7092-10

Overview

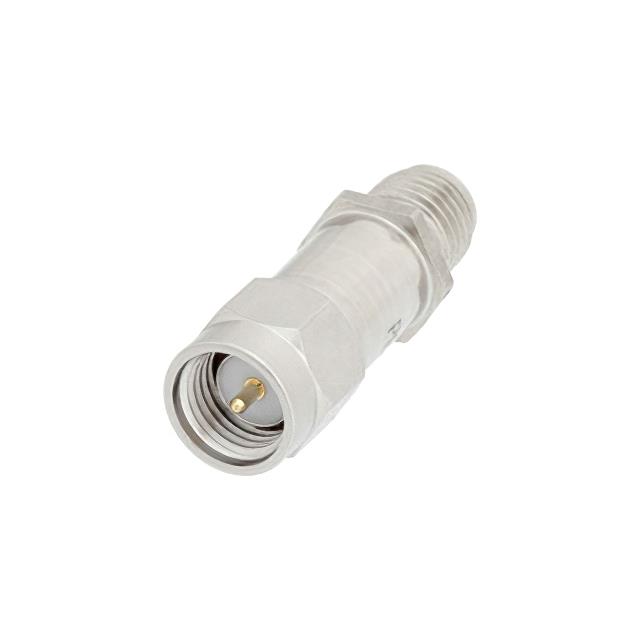

The Pasternack PE7092-10 is a coaxial fixed attenuator designed for in-line applications. It provides a nominal attenuation of 10 dB across a frequency range from DC to 18 GHz. The device features SMA male to SMA female connectors and operates at an impedance of 50 Ohms. It is rated for a maximum power handling capacity of 2 Watts at the stated attenuation value. The unit utilizes a resistive PI attenuator pad design housed in a passivated stainless steel body, ensuring durability and consistent performance in high-frequency environments.

Feature Summary

• In-line resistive PI attenuator pad design
• Passivated stainless steel housing for durability
• SMA connector interface with male-to-female configuration

Applications

• General-purpose RF test and measurement instrumentation
• Telecommunications equipment signal conditioning
• Microwave circuit attenuation and level control

Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm electrical tolerances and physical dimensions. Ensure compatibility with system impedance requirements of 50 Ohms. Confirm that the SMA connector gender matches the intended application cabling. Review thermal management guidelines for continuous operation at rated power levels.

Selection Notes

Select this component when a fixed 10 dB attenuation is required up to 18 GHz. The 2 Watt power rating suits moderate signal levels. The SMA interface is standard for many laboratory and industrial setups. Consider the passivated stainless steel construction for environmental resistance compared to other materials.

Part Context

This model belongs to the PE7092 series of fixed attenuators from Pasternack. The series includes variants with different attenuation values such as 5 dB, 6 dB, 8 dB, and 12 dB, all sharing similar frequency and power specifications. These components are part of Pasternack's broader portfolio of microwave and RF passive devices.

Replacement Considerations

Direct substitutes include other Pasternack models within the PE7092 series if different attenuation values are acceptable. Cross-manufacturer replacements must match the 10 dB attenuation, 50 Ohm impedance, DC-18 GHz frequency range, and SMA male-to-female connector configuration.
