PE7092-15

Overview

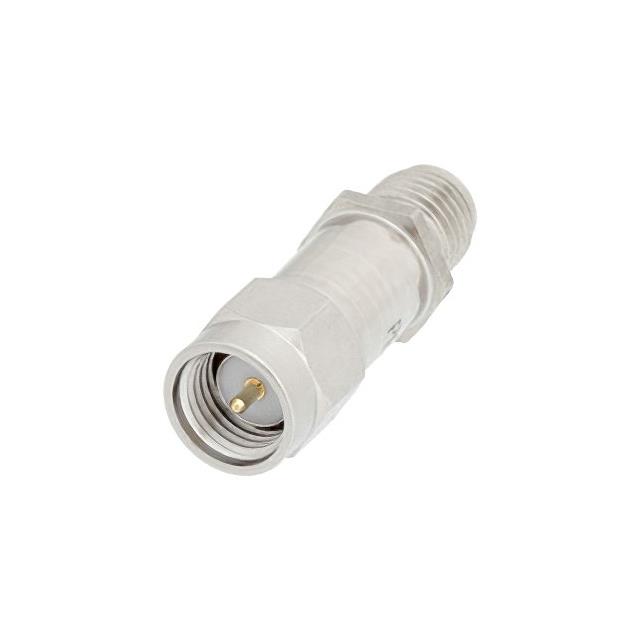

The Pasternack PE7092-15 is a fixed coaxial attenuator providing 15 dB of attenuation. It operates from DC to 18 GHz with a nominal impedance of 50 Ohms. The device handles up to 2 Watts of power at the stated attenuation value. It features SMA male to SMA female connectors and utilizes a passivated stainless steel body for durability.

Feature Summary

• Fixed 15 dB attenuation performance
• Frequency range extends to 18 GHz
• Passivated stainless steel construction

Applications

• RF signal level reduction in microwave circuits
• Impedance matching between components
• Signal conditioning in test and measurement setups

Procurement Notes

Verify the specific datasheet version for the PE7092-15 to confirm mechanical dimensions and connector tolerances. Ensure the application environment does not exceed the 2 Watt power rating or 18 GHz frequency limit. Cross-reference the SMA interface requirements with system cabling specifications before integration.

Selection Notes

Select this model when a precise 15 dB loss is required within an 18 GHz bandwidth. Consider the 2 Watt power handling capability relative to the system's maximum signal strength. The SMA interface suits standard coaxial systems, while the stainless steel body offers environmental resilience compared to plated alternatives.

Part Context

This component belongs to the Pasternack PE7092 series of fixed attenuators. The series includes variants with different attenuation values, such as 2, 4, 6, 8, 10, 20, and 40 dB. All models share similar SMA interfaces and 50 Ohm impedance characteristics, differing primarily in their decibel ratings and physical size constraints.

Replacement Considerations

Compatible substitutes include other 15 dB fixed attenuators with SMA male-to-female interfaces and 18 GHz operation. Verify that alternative parts meet the 2 Watt power rating and 50 Ohm impedance requirements to maintain system performance integrity.
