PE7092-2

Overview

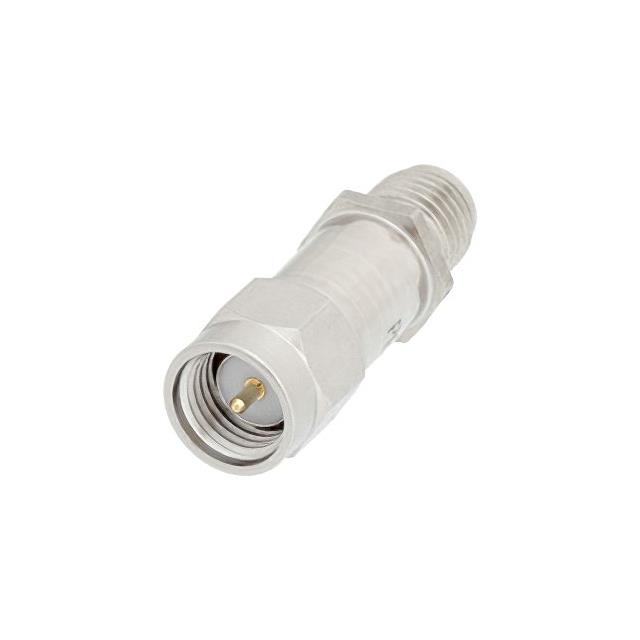

The Pasternack PE7092-2 is a fixed RF attenuator designed for high-frequency applications up to 18 GHz. It provides a precise attenuation value of 2 dB with a nominal impedance of 50 Ohms. The device features SMA male to SMA female connectors, enabling direct inline integration into coaxial systems. It is rated for a maximum power handling capacity of 2 Watts and operates within a temperature range extending to +125°C. Constructed with a passivated stainless steel body, it ensures durability and consistent performance in demanding microwave environments.

Feature Summary

• Fixed 2 dB attenuation level for signal reduction
• SMA male to SMA female connector interface
• Passivated stainless steel housing for corrosion resistance
• Operational frequency range up to 18 GHz

Applications

• Microwave test and measurement setups
• RF signal path power management
• Communication system component integration
• Laboratory equipment calibration

Procurement Notes

Verify the specific attenuation value matches the application requirement of 2 dB. Confirm that the SMA connector type aligns with existing cable assemblies. Ensure the operating environment does not exceed the 125°C maximum temperature rating. Check that the 2 Watt power limit is sufficient for the intended signal levels to prevent damage.

Selection Notes

Select this model when a precise 2 dB reduction is required at frequencies up to 18 GHz. Consider the SMA interface compatibility with current hardware. Evaluate the 2 Watt power handling against peak signal strengths. Choose this unit over variable attenuators if a static attenuation value is sufficient for the design.

Part Context

This component belongs to the PE7092 series of fixed attenuators from Pasternack. The series offers various attenuation values while maintaining consistent electrical characteristics and physical dimensions. All units in this line share the same SMA connector configuration and power ratings, differing primarily in their specific dB loss values.

Replacement Considerations

Compatible substitutes include other PE7092 series variants with different attenuation values if the dB requirement changes. Cross-reference with other manufacturers' 2 dB SMA fixed attenuators ensuring identical 50 Ohm impedance and 18 GHz frequency limits.
