PE7092-7

Overview

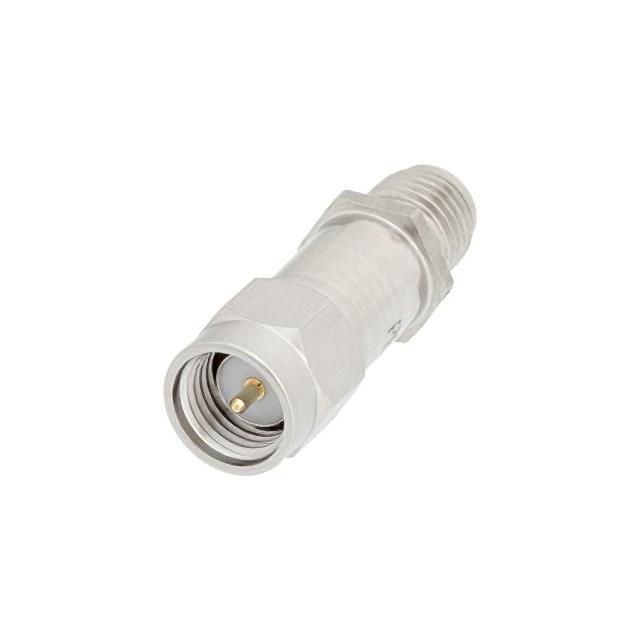

The Pasternack PE7092-7 is a fixed RF attenuator designed for high-frequency applications up to 18 GHz. It provides a nominal attenuation of 7 dB with a 50 Ohm impedance. The device features SMA male-to-female connectors and is rated for 2 Watts of power handling. Constructed with a passivated stainless steel body, it ensures durability in demanding environments.

Feature Summary

• Provides precise 7 dB signal attenuation across a wide frequency range
• Features robust SMA male-to-female connector interface
• Utilizes a durable passivated stainless steel housing

Applications

• RF signal level control in communication systems
• Test and measurement equipment calibration
• Microwave circuit protection and matching

Procurement Notes

Verify the specific datasheet version for the PE7092-7 model to confirm exact electrical tolerances and mechanical dimensions. Ensure compatibility with existing SMA interfaces in your system design before procurement.

Selection Notes

Select this component when a 7 dB fixed attenuation value is required within an 18 GHz bandwidth. Consider the 2 Watt power rating and SMA connectivity for integration into standard RF test setups or microwave circuits.

Part Context

This part belongs to Pasternack's PE7092 series of fixed attenuators. The series offers various attenuation values from 2 dB to 40 dB, all sharing similar SMA connector types and 18 GHz operational limits, allowing for consistent design across different signal levels.

Replacement Considerations

Direct substitutes may include other 7 dB SMA fixed attenuators from manufacturers like Amphenol or Fairview Microwave, provided they match the 18 GHz frequency range and 2 Watt power rating specifications.
