PE7094-01

Overview

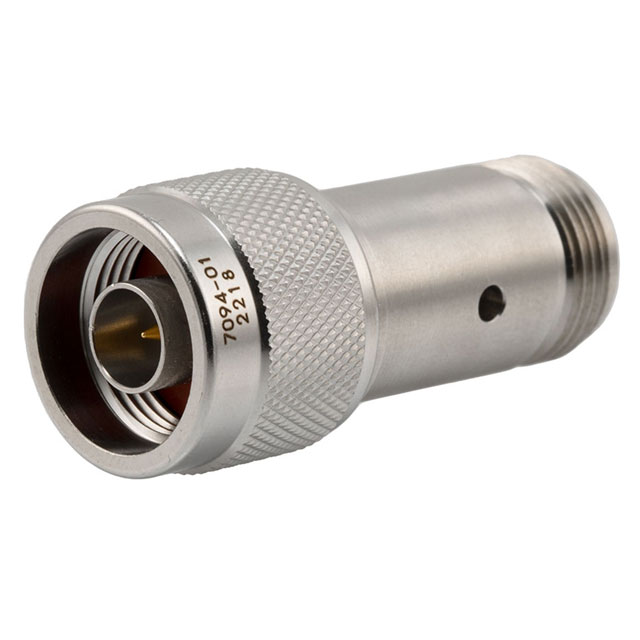

The Pasternack PE7094-01 is a fixed RF attenuator providing exactly 1 dB of attenuation. It operates from 0 Hz to 18 GHz with a nominal impedance of 50 Ohms and a power handling rating of 2 Watts. The device features an N male connector on side 1 and an N female connector on side 2, utilizing passivated stainless steel construction for durability.

Feature Summary

• Provides precise 1 dB signal reduction for low-loss applications
• Operates across a wide frequency range up to 18 GHz
• Features robust passivated stainless steel housing

Applications

• General-purpose RF test and measurement instrumentation
• Telecommunications equipment signal conditioning
• Microwave circuit attenuation requirements

Procurement Notes

Verify the specific part number PE7094-01 against official Pasternack documentation to confirm the 1 dB attenuation value and 18 GHz frequency limit. Ensure compatibility with N-type connectors and 50 Ohm systems before integration into RF designs.

Selection Notes

Select this component when minimal signal reduction is required in high-frequency environments. The 1 dB value distinguishes it from standard 3 dB or higher attenuators, making it suitable for fine-tuning signal levels without significant power loss.

Part Context

This model belongs to Pasternack's line of fixed attenuators designed for RF and microwave applications. It utilizes Type N connectors, offering a reliable interface for coaxial systems requiring stable performance across broad bandwidths.

Replacement Considerations

Consult official manufacturer substitution lists for verified equivalents. Generic replacements must match the 1 dB attenuation, 18 GHz frequency range, 50 Ohm impedance, and N-type connector configuration.
