PE7094-02

Overview

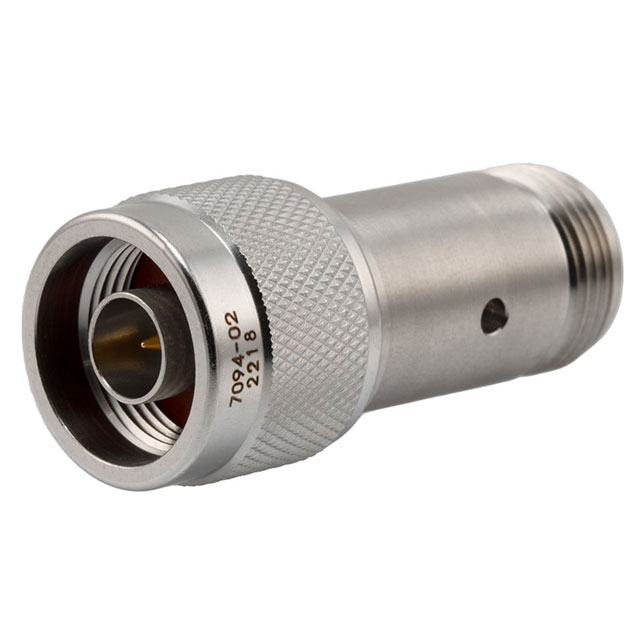

The Pasternack PE7094-02 is a fixed attenuator designed for RF signal conditioning. It features an N male connector on side one and an N female connector on side two, providing a 2 dB attenuation value. The device operates within a frequency range of 0 Hz to 18 GHz and supports a maximum power handling capacity of 2 watts. Constructed with passivated stainless steel components, it maintains a characteristic impedance of 50 Ohms throughout its operational bandwidth.

Feature Summary

• Provides precise 2 dB signal attenuation for RF applications
• Operates effectively across a wide frequency spectrum up to 18 GHz
• Features durable passivated stainless steel construction for environmental resistance

Applications

• RF signal conditioning in microwave systems
• Impedance matching in test equipment
• Power level adjustment in telecommunications infrastructure

Procurement Notes

Verify the specific connector gender configuration matches the system requirements, ensuring side one is male and side two is female. Confirm that the 2-watt power rating and 18 GHz frequency limit are sufficient for the intended application environment. Check for passivated stainless steel material specifications to ensure compatibility with required corrosion resistance standards.

Selection Notes

Select this component when a fixed 2 dB reduction is required for N-type interfaces. Ensure the operating frequency does not exceed 18 GHz and power levels remain within the 2-watt limit. Consider the physical form factor as an in-line module suitable for standard coaxial cable connections.

Part Context

This model belongs to Pasternack's line of fixed attenuators, which offer various attenuation levels and frequency ranges. These components are engineered for reliable performance in general-purpose testing and instrumentation environments where stable signal levels are critical.

Replacement Considerations

No public confirmed substitute part numbers are available.
