PE7094-03

Overview

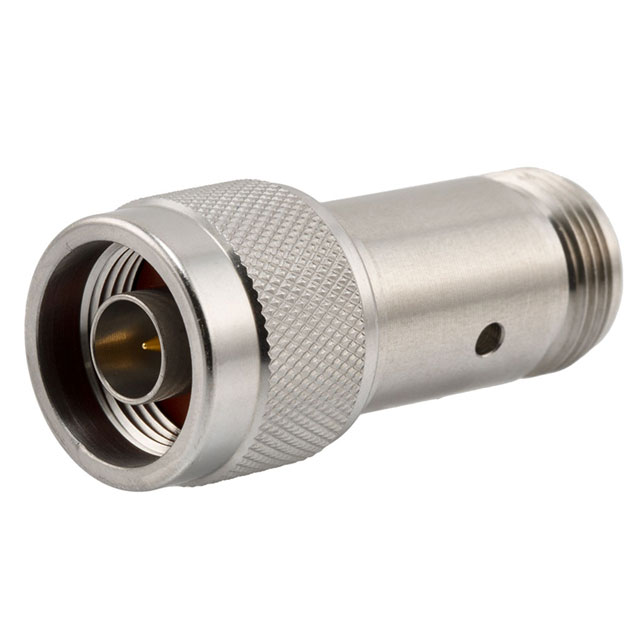

The Pasternack PE7094-03 is a fixed RF attenuator module designed for signal reduction in microwave applications. It features N-type connectors with male gender on one side and female gender on the other, ensuring compatibility with standard coaxial systems. The component operates across a frequency range from 0 Hz to 18 GHz, providing precise attenuation of 3 dB. It maintains a 50 Ohm impedance and supports a power rating of up to 2 Watts, making it suitable for high-frequency signal management tasks.

Feature Summary

• Provides fixed 3 dB signal attenuation for consistent signal level control
• Operates effectively across a wide frequency spectrum extending to 18 GHz
• Utilizes robust N-type connector interface for reliable interconnection

Applications

• RF and microwave signal path conditioning
• Test and measurement equipment calibration
• Communication system signal level adjustment

Procurement Notes

Verify the specific connector gender configuration, as documentation indicates a male-to-female arrangement. Confirm that the 2 Watt power rating aligns with your system's thermal requirements. Ensure the 18 GHz frequency coverage meets your operational bandwidth needs before finalizing procurement decisions.

Selection Notes

Select this model when a precise 3 dB reduction is required at frequencies up to 18 GHz. The N-type interface suits general-purpose RF environments. Consider the 2 Watt power handling capability for moderate power applications. This fixed attenuator is ideal where variable adjustment is unnecessary.

Part Context

This component belongs to Pasternack's line of RF attenuators, specifically engineered for microwave frequency ranges. It serves as a passive device to reduce signal amplitude without distortion. The design focuses on maintaining impedance matching and performance stability within the specified frequency band.

Replacement Considerations

Direct substitutes must match the 3 dB attenuation value, 18 GHz frequency limit, and N-type connector interface. Verify equivalent power ratings and impedance specifications to ensure functional interchangeability in existing circuits.
