PE7094-04

Overview

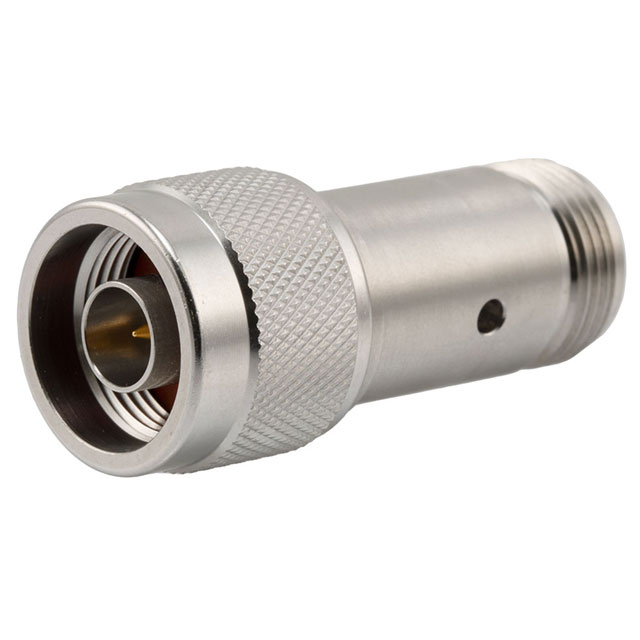

The Pasternack PE7094-04 is a fixed RF attenuator module designed for high-frequency signal management. It provides a precise attenuation value of 4 dB within an impedance environment of 50 Ohms. The device operates across a frequency range from 0 Hz to 18 GHz, supporting applications requiring stable performance up to microwave frequencies. It features N-Type connectors with male gender on one side and female gender on the other, facilitating direct integration into coaxial systems. The unit is rated for a maximum power handling capacity of 2 Watts, ensuring reliability under moderate load conditions.

Feature Summary

• Provides fixed 4 dB attenuation for consistent signal level reduction
• Operates effectively up to 18 GHz for wideband microwave applications
• Features N-Type male-to-female connector interface for standard coaxial integration

Applications

• RF test and measurement setups requiring precise signal reduction
• Microwave communication systems needing fixed gain control
• Signal conditioning in high-frequency instrumentation

Procurement Notes

Verify the specific connector gender configuration matches your system requirements, as this model specifies N-Type male to female. Confirm that the 2 Watt power rating and 18 GHz frequency limit align with your operational parameters. Check for RoHS compliance status if environmental regulations apply to your deployment. Ensure physical dimensions fit your enclosure constraints before finalizing procurement.

Selection Notes

Select this component when a fixed 4 dB reduction is required at frequencies extending to 18 GHz. Compare against variable attenuators if adjustable levels are needed later. Consider the N-Type interface compatibility with existing cabling infrastructure. Evaluate the 2 Watt power limit against peak signal strengths to prevent damage. This model suits applications where precision and wide bandwidth are prioritized over adjustability.

Part Context

This part belongs to Pasternack's line of RF attenuators, specifically designed for interconnect solutions. It falls under the category of fixed attenuators used in radio frequency engineering. The product series focuses on providing reliable signal attenuation in coaxial environments. Pasternack manufactures these components to meet strict industry standards for impedance and frequency response.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Users should consult manufacturer catalogs for equivalent models with matching electrical specifications and connector types.
