PE7094-06

Overview

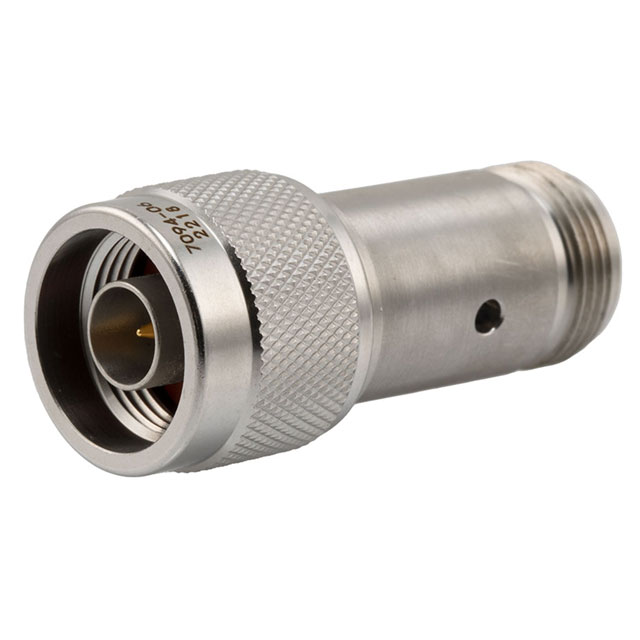

The Pasternack PE7094-06 is a fixed attenuator designed for RF and microwave applications. It features an N male connector on side one and an N female connector on side two, providing inline signal reduction. The device offers a nominal attenuation of 6 dB across a frequency range from 0 Hz to 18 GHz. It maintains a characteristic impedance of 50 Ohms and supports a maximum power handling capacity of 2 Watts. The construction utilizes passivated stainless steel materials, ensuring durability and performance in demanding environments.

Feature Summary

• Provides precise 6 dB signal attenuation for measurement equipment protection
• Operates effectively across a wide frequency spectrum up to 18 GHz
• Constructed with durable passivated stainless steel housing

Applications

• RF test and measurement setups requiring signal level adjustment
• Microwave circuit design for power reduction
• Protecting sensitive instrumentation from high-power signals

Procurement Notes

Verify the specific part number PE7094-06 against official Pasternack documentation to confirm the 6 dB attenuation value and 18 GHz frequency rating. Ensure compatibility with N-type connectors and 50 Ohm systems. Check for any specific environmental ratings or certifications required for your application before finalizing procurement.

Selection Notes

Select this component when a fixed 6 dB reduction is necessary within an 18 GHz bandwidth. Consider the 2W power limit and N-type interface requirements. Evaluate if the passivated stainless steel construction meets environmental needs compared to other housing materials available in the series.

Part Context

This model belongs to Pasternack's line of fixed attenuators, which are used to reduce signal strength in RF systems. The PE7094-06 specifically addresses the need for reliable attenuation between N-type connectors, supporting frequencies up to 18 GHz while maintaining a 50 Ohm impedance profile for standard RF applications.

Replacement Considerations

Consult official Pasternack documentation for confirmed substitute part numbers with identical electrical specifications and connector types.
