PE7094-08

Overview

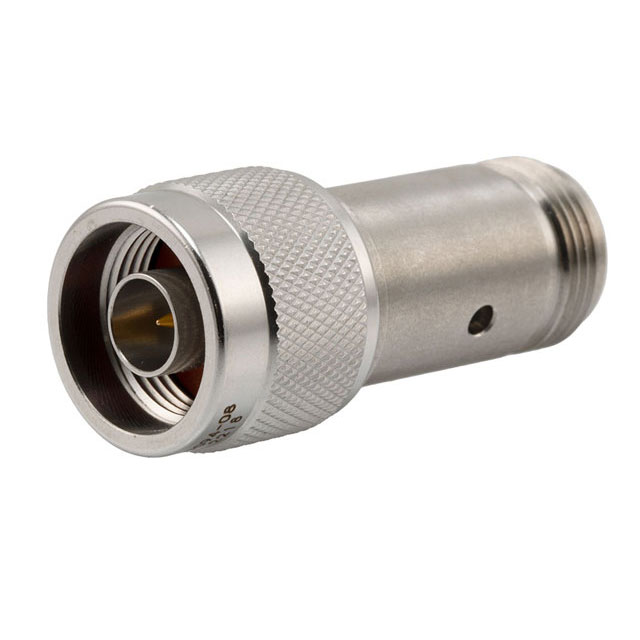

The Pasternack PE7094-08 is an in-line RF attenuator module designed for high-frequency applications. It provides a fixed attenuation value of 8 dB across a frequency range from 0 Hz to 18 GHz. The component operates with a characteristic impedance of 50 Ohms and supports a maximum power handling capacity of 2 Watts. It utilizes N-Type connectors for both input and output interfaces, ensuring compatibility with standard RF test and measurement systems.

Feature Summary

• Provides precise 8 dB signal reduction for RF circuitry
• Operates effectively up to 18 GHz frequency limit
• Features robust 2W power handling capability
• Utilizes durable N-Type connector interface

Applications

• RF signal level adjustment in test equipment
• Microwave system power management
• Signal path isolation and protection
• Laboratory measurement setups

Procurement Notes

Verify the specific part number PE7094-08 against official Pasternack documentation to confirm the 8 dB attenuation value and N-Type interface specifications. Ensure that the required 2W power rating and 18 GHz frequency range align with your system design constraints before procurement.

Selection Notes

Select this component when a fixed 8 dB attenuation is required within an 18 GHz bandwidth. Consider the 50 Ohm impedance match and N-Type connector compatibility with existing cabling. Evaluate the 2W power handling against peak signal levels to ensure reliable operation without thermal degradation.

Part Context

This model belongs to the Pasternack PE7094 series of RF attenuators. The series offers various attenuation values while maintaining consistent N-Type connectivity and 18 GHz performance limits. This specific variant is designated by the suffix indicating its unique attenuation specification.

Replacement Considerations

Compatible substitutes include other Pasternack models within the PE7094 series offering identical 8 dB attenuation, such as those with matching N-Type interfaces and 2W power ratings. Verify frequency response and impedance characteristics match the original requirements.
