PE7094-09

Overview

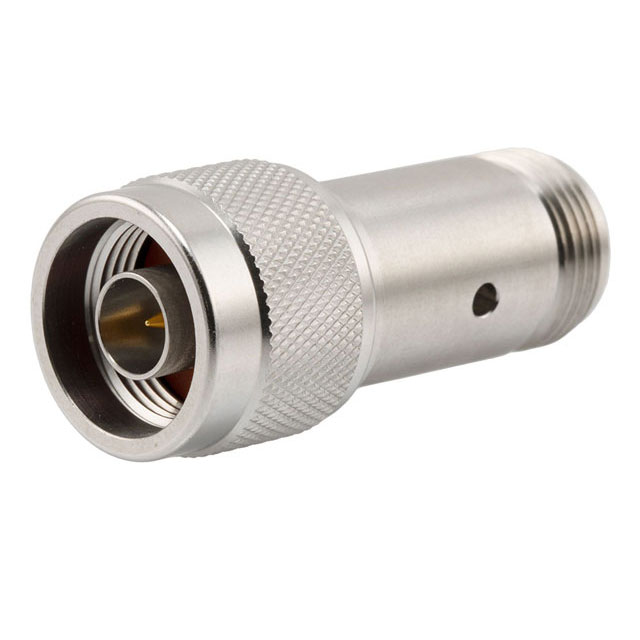

The Pasternack PE7094-09 is a fixed RF attenuator module designed for in-line signal reduction. It provides a precise attenuation value of 9 dB across a frequency range of 0 Hz to 18 GHz. The component features a 50 Ohm impedance and supports a maximum power handling capacity of 2 Watts. It utilizes N-Type connectors, specifically configured with an N Male connector on one side and an N Female connector on the other. The internal construction employs passivated stainless steel materials to ensure durability and consistent performance in high-frequency applications.

Feature Summary

• Provides fixed 9 dB signal attenuation for circuit protection
• Operates effectively from DC up to 18 GHz frequencies
• Features robust passivated stainless steel internal construction
• Connects via standard N-Type male and female interfaces

Applications

• RF test and measurement instrumentation setups
• Telecommunications equipment signal conditioning
• Protecting sensitive measurement devices from high power levels
• General-purpose RF circuit signal reduction

Procurement Notes

Verify that the specific order matches the PE7094-09 part number to ensure the correct 9 dB attenuation value and N-Type connector configuration. Confirm RoHS compliance status if required by project specifications. Check datasheet details for exact mechanical dimensions and mounting requirements before integration into the final assembly.

Selection Notes

Select this component when a fixed 9 dB reduction is required within a 50 Ohm system operating up to 18 GHz. Ensure the application power levels do not exceed the 2 Watt rating. Consider the N-Type interface compatibility with existing cabling and equipment ports. This model is suitable for environments requiring durable, passivated stainless steel construction for reliable long-term performance.

Part Context

This component belongs to the Pasternack PE7094 series of fixed attenuators. The series offers various attenuation values while maintaining consistent electrical characteristics such as 50 Ohm impedance and 18 GHz frequency range. The PE7094-09 specifically denotes the 9 dB variant within this standardized product line, sharing common form factors and connector types with other models in the family.

Replacement Considerations

Direct substitutes include other Pasternack fixed attenuators with identical 9 dB attenuation, N-Type connectors, and 18 GHz frequency ratings. Verify that any replacement maintains the same 2 Watt power handling capability and 50 Ohm impedance to ensure circuit compatibility without modification.
