PE7094-12

Overview

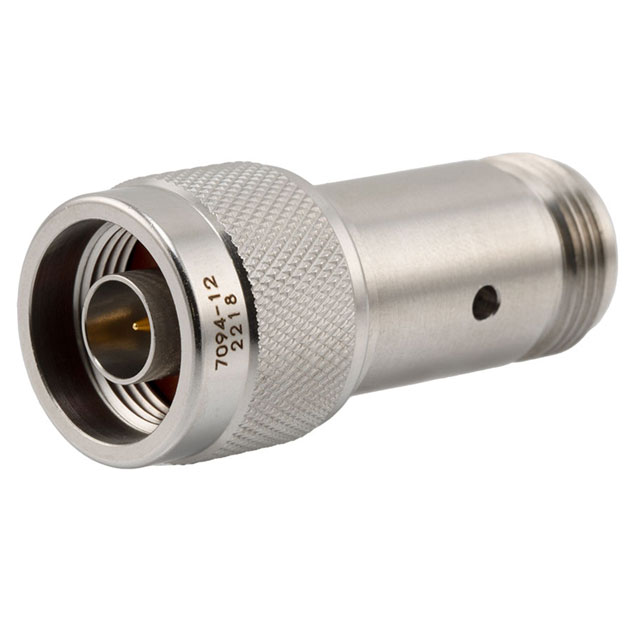

The Pasternack PE7094-12 is a fixed RF attenuator module designed for high-frequency applications. It provides a precise attenuation value of 12 dB across a frequency range from 0 Hz to 18 GHz. The component operates with a characteristic impedance of 50 Ohms and supports a maximum power handling capacity of 2 Watts. It utilizes an N-Type connector interface, facilitating integration into standard coaxial systems.

Feature Summary

• Provides fixed 12 dB signal attenuation
• Operates up to 18 GHz frequency range
• Features N-Type connector interface

Applications

• RF test and measurement equipment
• Signal conditioning in microwave circuits
• Attenuation in communication systems

Procurement Notes

Verify the specific datasheet for the PE7094-12 to confirm mechanical dimensions and detailed electrical tolerances. Ensure compatibility with existing N-Type interfaces in your system design. Check for any RoHS compliance documentation if required by your manufacturing standards.

Selection Notes

Select this model when a fixed 12 dB reduction is required at frequencies up to 18 GHz. Consider the 2W power rating to ensure it meets the signal levels in your application. The N-Type interface dictates the mating connectors needed for installation.

Part Context

This component belongs to Pasternack's line of RF attenuators. It serves as a passive device to reduce signal amplitude without distortion within its specified bandwidth. The N-Type interface is common in general-purpose RF applications requiring robust connections.

Replacement Considerations

Check for other Pasternack models with different attenuation values or connector types if specifications do not match. Verify that substitute components maintain the same 50 Ohm impedance and 18 GHz frequency limit.
