PE7094-15

Overview

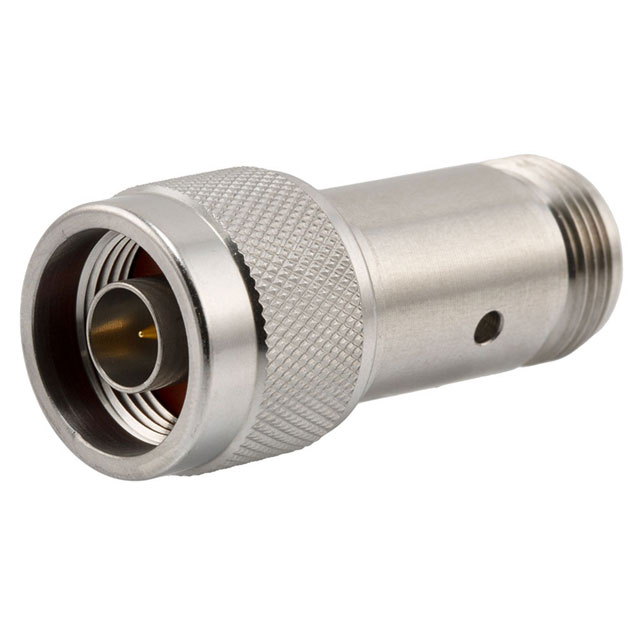

The Pasternack PE7094-15 is a fixed RF attenuator module designed for in-line applications. It provides a nominal attenuation of 15 dB with a frequency range extending from 0 Hz to 18 GHz. The component utilizes N-type connectors and supports a maximum power handling capacity of 2 Watts at the stated attenuation value. Constructed with passivated stainless steel, it ensures durability in demanding environments.

Feature Summary

• Provides fixed 15 dB signal attenuation across a wide frequency spectrum up to 18 GHz
• Features N-type male to female connector interface for standard integration
• Rated for 2 Watts power handling at specified attenuation levels
• Housed in a passivated stainless steel enclosure for environmental resistance

Applications

• RF signal level reduction in microwave test and measurement setups
• Impedance matching and isolation in high-frequency communication systems
• Signal conditioning in radar and electronic warfare equipment
• Component testing within laboratory calibration environments

Procurement Notes

Verify that the required attenuation tolerance and power rating align with system specifications before procurement. Confirm that the N-type connector gender and mating requirements match existing infrastructure. Ensure operational frequencies remain within the 0 Hz to 18 GHz range to maintain performance integrity. Check for compliance with relevant environmental standards if deployed in harsh conditions.

Selection Notes

Select this model when a precise 15 dB reduction is needed without variable adjustment capabilities. Consider the 2 Watt power limit to prevent thermal damage during operation. The 18 GHz upper frequency limit makes it suitable for broader bandwidth applications compared to lower-rated counterparts. Evaluate the physical size and mounting requirements against available space constraints.

Part Context

This component belongs to Pasternack's line of fixed RF attenuators, specifically the PE7094 series. These modules are engineered for reliable performance in microwave and radio frequency circuits. The series offers various attenuation values to suit different signal processing needs while maintaining consistent impedance characteristics.

Replacement Considerations

Compatible substitutes include other 15 dB fixed attenuators with N-type connectors, such as the PE7094-15 variants or equivalent models from other manufacturers offering similar 18 GHz bandwidth and 2 Watt power ratings. Verify connector compatibility and physical dimensions before substitution.
