PE7094-30

Overview

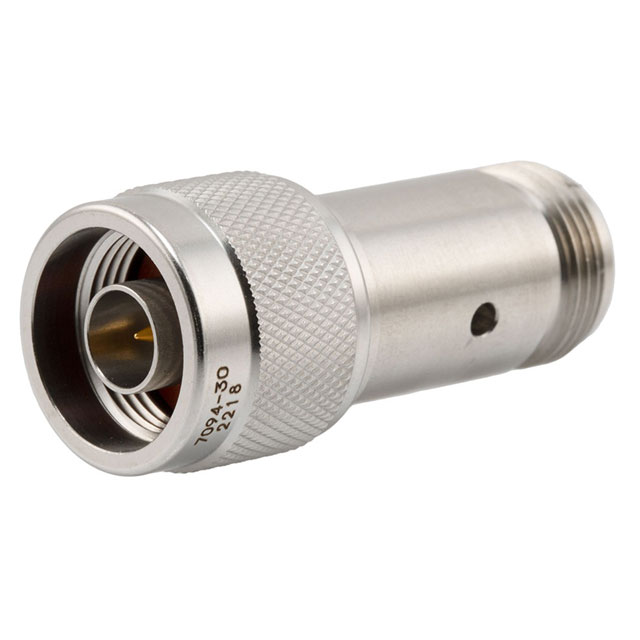

The Pasternack PE7094-30 is a fixed RF attenuator module designed for high-frequency applications. It provides a precise attenuation value of 30 dB across a frequency range from 0 Hz to 18 GHz. The component operates with a characteristic impedance of 50 Ohms and can handle up to 2 Watts of power. It features N-Type connectors in an in-line module configuration, ensuring reliable signal management in microwave systems.

Feature Summary

• Provides fixed 30 dB attenuation for signal level control
• Operates effectively from DC up to 18 GHz frequency range
• Supports 2 Watt power handling capacity
• Utilizes N-Type connectors for secure in-line integration

Applications

• RF test and measurement equipment
• Microwave communication systems
• Signal conditioning in high-frequency circuits

Procurement Notes

Verify the specific connector gender configuration (male-to-female or similar) against system requirements before ordering. Confirm that the 2W power rating and 50 Ohm impedance align with the target circuit design. Ensure the 18 GHz upper frequency limit meets the operational bandwidth needs of the application.

Selection Notes

Select this model when a fixed 30 dB reduction is required at frequencies approaching 18 GHz. Consider the N-Type interface compatibility with existing cabling infrastructure. Evaluate the 2W power limit against peak signal levels to prevent component damage during operation.

Part Context

This component belongs to Pasternack's line of N-Type fixed attenuators. These modules are engineered for stability and precision in RF environments. The series offers various attenuation values while maintaining consistent impedance and frequency performance characteristics across the product family.
